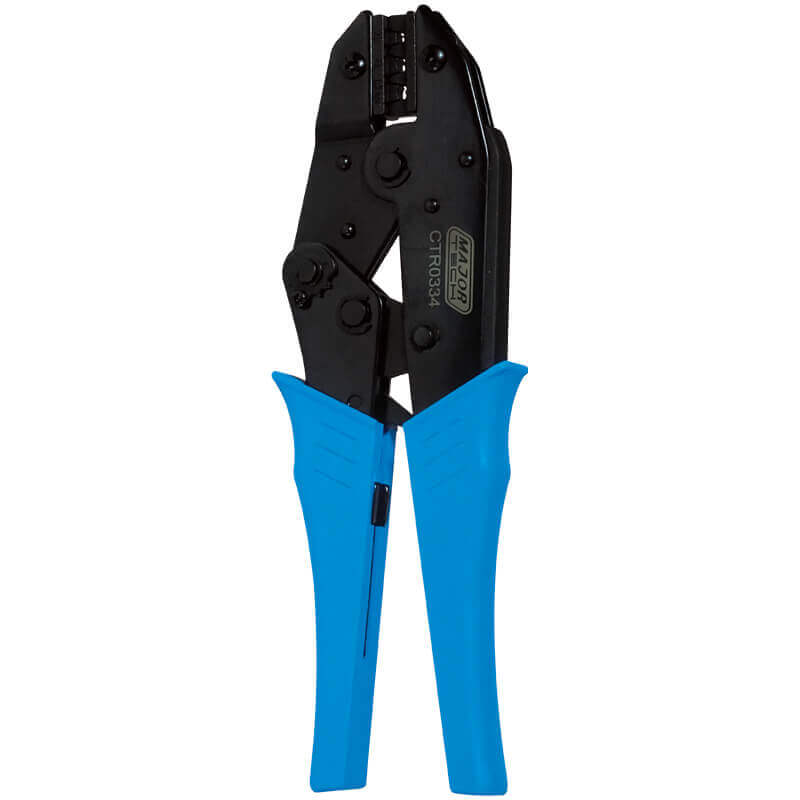

MC4 Crimping Tool 2.5-6mm MajorTech

BRAND: Major Tech
SKU: CTR0334
$63.80 List price: $85.00
+ −
30 Days Return Electricians Unlock Trade Access
MajorTech MC4 crimping tool features 2.5-6mm capacity and shaped dies for solar MC4 connectors. Ideal for solar cable termination.

Alternatively Known As: MC4 Solar Crimper, PV Cable Crimping Tool, Solar Connector Crimping Pliers

Technical Specifications
  • Terminal Sizes: 2.5 mm², 4.0 mm² and 6.0 mm²
  • Tool Type: Ratchet-style MC4 solar crimping tool
  • Crimping Adjustment: Pressure adjustment mechanism
  • Operation: Suitable for left- and right-hand operation
  • Release Mechanism: Automatic release with manual override
  • Jaws: Professional-quality drop-forged jaws
  • Application: Solar panel PV cable terminals
  • Dimensions (H x L x W): 38mm x 250mm x 50mm
  • Weight: 0.6 kg
Key Features
  • Designed for MC4 solar connector terminals
  • Crimps 2.5 mm², 4 mm² and 6 mm² cable terminals
  • Pressure-adjustable ratchet mechanism for repeatable crimps
  • Automatic release with manual override
  • Suitable for left- or right-hand operation
  • Drop-forged crimping jaws
  • Finger guard for improved grip and hand protection
Professional Installation Requirements
  • PV connector termination should be performed by a suitably qualified or licensed electrical worker using the connector manufacturer's specified crimping tool and technique. Follow AS/NZS 5033 requirements for photovoltaic array installations.
Applications
  • Solar photovoltaic cable termination
  • MC4 connector assembly and replacement
  • Residential and commercial PV array installation
  • Solar panel and inverter cable preparation
  • Electrical maintenance and repair of compatible PV connector systems
Standards & Compliance
  • Supports the connector termination requirements of AS/NZS 5033:2021 when used with compatible PV connectors and in accordance with the connector manufacturer's specified tool and technique.
Environmental Benefits
  • Durable drop-forged metal construction may extend service life and reduce replacement waste
  • Metal tool components are generally recyclable at end of service life
  • Enables reliable PV connector termination, helping reduce premature connector failure and associated material waste
Warranty Information

MajorTech lists tools with a 2-year warranty, subject to its warranty conditions and proof of purchase.

Available Now

Available through MajorTech and authorised Australian distributors.
