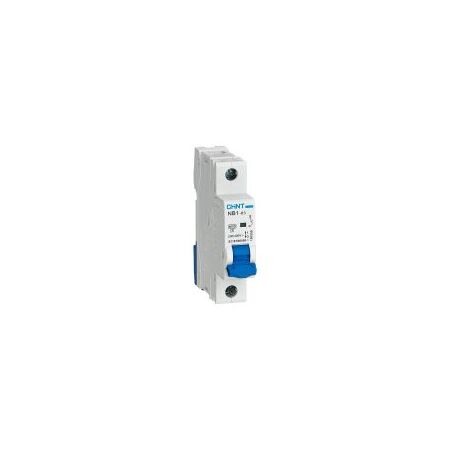

MCB 1P 10A 6kA B Curve DIN Rail NB1-63 Chint
Chint NB1-63 1P 10A MCB features 6kA breaking capacity, B-curve thermal-magnetic protection and DIN rail mount to IEC 60898. For domestic and commercial boards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 10A B-curve MCB, Single-pole circuit breaker, DIN rail miniature circuit breaker
Technical Specifications
- Rated Current: 10 A
- Number of Poles: 1P
- Rated Voltage: 230 V AC
- Rated Frequency: 50/60 Hz
- Breaking Capacity: 6 kA
- Tripping Characteristic: B curve, 3–5 times rated current
- Protection Function: Overload, short-circuit and circuit isolation
- Insulation Voltage: 500 V
- Impulse Withstand Voltage: 4 kV
- Mechanical Life: 20,000 operations
- Electrical Life: 4,000 operations
- Mounting: TH35-7.5 DIN rail
- Connection: Top or bottom feed
- Terminal Capacity: 1–25 mm² conductor
- Terminal Tightening Torque: 2.0 N·m
- Ingress Protection: IP20
- Operating Temperature: −5 °C to +40 °C
- Dimensions (H x L x W): 82mm x 75.5mm x 18mm
- Weight: 0.12 kg
Key Features
- Single-pole protection for low-voltage AC circuits
- B-curve thermal-magnetic protection suited to resistive loads and lighting circuits
- 6 kA rated short-circuit breaking capacity
- Compact one-module DIN rail format
- Suitable for domestic, commercial and light industrial distribution boards
- Top or bottom cable feeding supported
- Compatible with selected NB1-63 auxiliary and signalling accessories
Professional Installation Requirements
- Installation and connection to mains electrical circuits must be performed by a licensed electrician in accordance with applicable Australian wiring rules, manufacturer instructions and local regulatory requirements.
Applications
- Domestic electrical distribution boards
- Commercial switchboards
- Lighting circuits
- Resistive load circuits
- Overload and short-circuit protection for final subcircuits
- Low-voltage AC control and distribution panels
Standards & Compliance
- AS/NZS 60898.1 is the applicable Australian/New Zealand product standard for miniature circuit-breakers used in household and similar installations; CHINT product documentation specifies IEC/EN 60898-1.
- Installation should also comply with AS/NZS 3000 wiring rules and applicable state or territory electrical regulations.
Environmental Benefits
- Long mechanical service life can reduce replacement frequency and associated material waste
- Modular DIN rail construction allows individual circuit protection devices to be replaced without replacing the complete switchboard assembly
- Metal components and thermoplastic housing materials can be separated for appropriate recycling at end of service life
Warranty Information
CHINT warranty policy provides 27 months from the date of manufacture for other low-voltage apparatus, subject to purchase through authorised sales channels and the applicable warranty terms.
