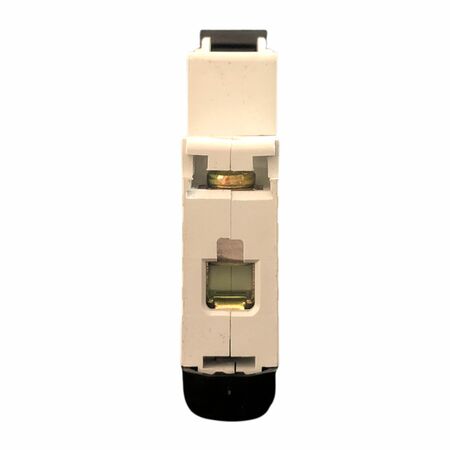

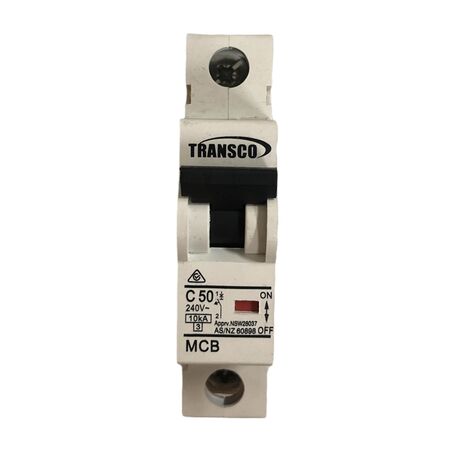

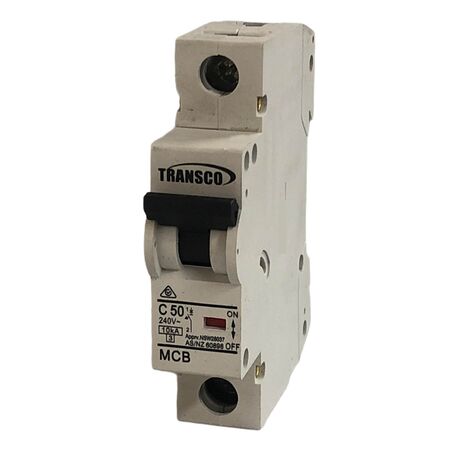

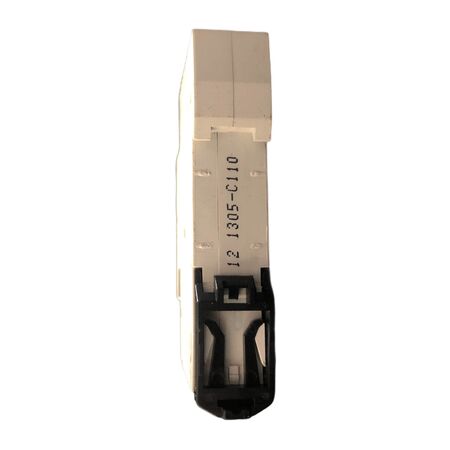

MCB 1P 50A 10kA DIN Rail 400V Transco
Transco MCB DIN Rail features 50A rated current, 10kA and 230 400V. Magnetic tripping characteristics for performance. Ideal for homes, apartments, offices.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Rated current: 50A
- Rated short-circuit capacity (Icn): 10kA
- Rated voltage: 230/400V
- Frequency: 50/60Hz
- Maximum service voltage: 264V
- Energy limiting class: 3
- Mechanical life: greater than 20,000 operations
- Electrical life: greater than 8,000 operations
- Connection terminal: Screw terminal, Pillar terminal with clamp
- Connection capacity: 1-16mm
- Installation: On symmetrical DIN rail 35mm panel mounting
- Dimensions (H x L x W): 80mm x 70mm x 100mm
- Weight: 0.5 kg
Key Features
- Rated current of 50A with a short-circuit capacity of 10kA.
- Magnetic tripping characteristics for reliable performance.
- Contact position indication for safety.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, offices
- Commercial: Retail, hospitality, workspaces
- General: Any location requiring circuit protection
Standards & Compliance
- Complies with AS/NZ 61898-1 for safety and performance standards.
Environmental Benefits
- Energy-efficient design contributes to reduced power consumption.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Transco Circuit Breaker 1 Pole 50A 10KA is available now for immediate purchase. Ideal for residential and commercial spaces requiring circuit protection.
