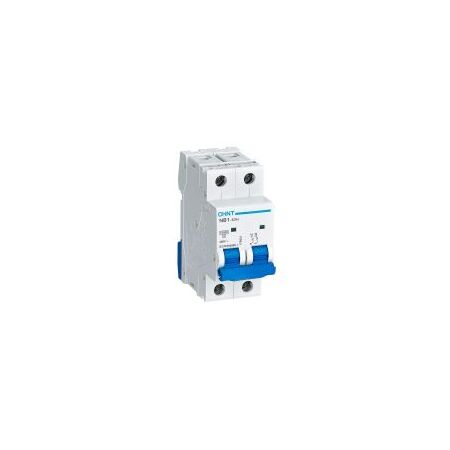

MCB 2P 16A 10kA D Curve DIN Rail NB1-63H Chint
Chint NB1-63H 2P 16A MCB features 10kA breaking capacity, D-curve thermal-magnetic protection and DIN rail mount to IEC 60898. For domestic and commercial boards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: CHINT NB1-63H D16 2P MCB, 2-Pole DIN Rail Circuit Breaker, D16 MCB, Miniature Overcurrent Circuit Breaker
Technical Specifications
- Product Type: Miniature circuit breaker for overcurrent protection
- Rated Current: 16A
- Number of Poles: 2P
- Tripping Curve: D curve, 10–14 times rated current
- Rated Voltage: 415V AC for 2P configuration
- Rated Frequency: 50/60Hz
- Rated Breaking Capacity Icn: 10kA
- Rated Service Breaking Capacity Ics: 7.5kA
- Rated Impulse Withstand Voltage: 4kV
- Standard Product Design: IEC/EN 60898-1
- Mounting: 35mm DIN rail using fast-clip device
- Terminal Connection: Cable, U-type busbar or pin-type busbar
- Connection Direction: Top or bottom
- Protection Degree: IP20
- Mechanical Life: 20,000 cycles
- Electrical Life: 10,000 cycles
- Operating Temperature: -35°C to +70°C
- Energy Limiting Class: 3
- Dimensions (H x L x W): 86mm x 78mm x 36mm
- Weight: 0.22 kg
Key Features
- Two-pole switching and overcurrent protection
- D-curve thermal-magnetic tripping characteristic for circuits with high inrush current
- 10kA short-circuit breaking capacity
- Suitable for residential, commercial and industrial distribution boards
- Compatible with cable and common DIN busbar connection methods
- Contact position indication for easier circuit status identification
- Compact 2-module DIN rail format
- Accessory-compatible design for auxiliary, shunt, undervoltage and alarm contacts
Professional Installation Requirements
- Installation and connection to mains electrical circuits must be carried out by a licensed electrician in accordance with AS/NZS 3000 and applicable local requirements. Confirm the prospective fault current, conductor sizing, discrimination and required RCM or SAA approval marking before installation.
Applications
- Residential switchboards
- Commercial electrical distribution boards
- Industrial control and distribution panels
- Protection of circuits supplying motors, transformers and other high-inrush loads
- DIN rail assemblies requiring two-pole overcurrent protection
Standards & Compliance
- AS/NZS 60898.1:2004 for miniature overcurrent circuit-breakers for household and similar installations
- Australian installation applications must also comply with AS/NZS 3000 Wiring Rules and applicable electrical equipment registration requirements
Environmental Benefits
- Long mechanical and electrical service life can reduce replacement frequency and associated waste
- Compact DIN rail construction helps minimise switchboard material and installation space
- Metal and thermoplastic components can be separated for responsible end-of-life recycling where local facilities permit
Warranty Information
CHINT warranty policy provides 27 months from the date of manufacture for other low-voltage apparatus sold through authorised sales channels, subject to applicable contract terms and conditions.
Available Now
Available through authorised CHINT distributors in Australia.
