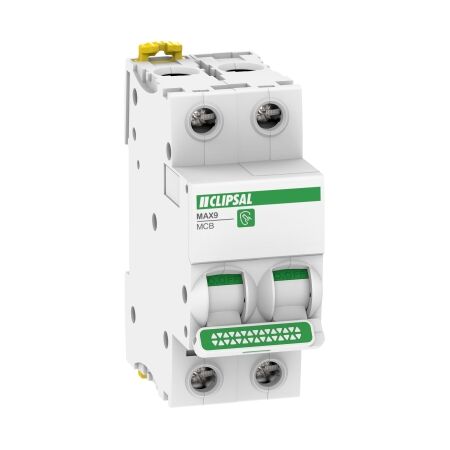

MCB 2P 20A 6kA C Curve IP20 Clipsal
Clipsal MCB C Curve features 415V AC 50 60Hz, IP20 and 4kV. Breaking capacity of 6000A at 415V AC. Toggle control type with ON OFF indication.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Rated operational voltage: 415V AC 50/60Hz
- IP degree of protection: IP20
- Rated impulse withstand voltage: 4kV
- Rated insulation voltage: 500V
- Pollution degree: 2
- Overvoltage category: III
- Tropicalisation severity: B conforming to IEC 60068-2-30
- Dimensions (H x L x W): 85mm x 75mm x 36mm
- Weight: 0.25 kg
Key Features
- 2 poles with a rated current of 20A.
- Breaking capacity of 6000A at 415V AC.
- C curve for standard applications.
- Toggle control type with ON/OFF indication.
- Mechanical durability of 20,000 cycles.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Distribution in residential and commercial electrical systems.
Standards & Compliance
- Conforming to AS/NZS 60898 for safety and performance standards.
Environmental Benefits
- Compliant with RoHS and free of substances of very high concern.
Warranty Information
7 years warranty against manufacturing defects.
Available Now
The Clipsal MAX9 Miniature Circuit-Breaker (MCB) 2P, 20A, C Curve is available now for immediate purchase. Ideal for distribution in residential and commercial electrical systems.
