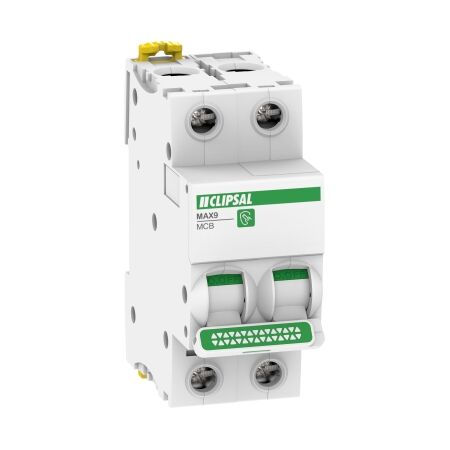

MCB 2P 32A 6kA C Curve 415VAC Clipsal
Clipsal MCB C Curve AC features 32A rated current and 415V AC 50 60Hz. Breaking capacity of 6000A. Toggle control type with ON OFF indication.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Rated current: 32A
- Rated operational voltage: 415V AC 50/60Hz
- Curve code: C
- Magnetic tripping limit: 5...10 x In
- Rated impulse withstand voltage: 4kV
- Rated insulation voltage: 500V
- Pollution degree: 2
- Overvoltage category: III
- Tropicalisation: severity B conforming to IEC 60068-2-30
- Dimensions (H x L x W): 85mm x 75mm x 36mm
- Weight: 0.25 kg
Key Features
- Rated current of 32A at 30°C.
- Rated operational voltage of 415V AC.
- Breaking capacity of 6000A.
- Toggle control type with ON/OFF indication.
- Mechanical durability of 20,000 cycles.
- Electrical durability of 10,000 cycles at 240V.
- IP20 degree of protection.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Distribution in residential and commercial electrical systems.
Standards & Compliance
- Conforming to AS/NZS 60898 for safety and performance standards.
Environmental Benefits
- Compliant with RoHS and free of substances of very high concern.
Warranty Information
7 years warranty against manufacturing defects.
Available Now
The Clipsal MAX9 Miniature Circuit-Breaker (MCB) is available now for immediate purchase. Ideal for distribution in residential and commercial electrical systems.
