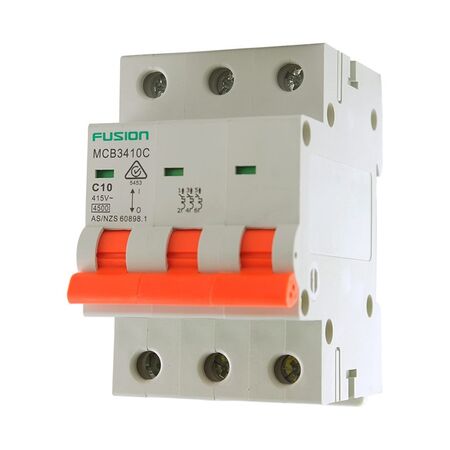

MCB 3P 10A 4.5kA Connected Switchgear
Connected Switchgear MCB 3P 10A 4.5kA features 415V AC, 10A amperage and 4.5kA power. 18mm pole width with ON OFF indicators.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Product Code: MCB3410C
- Voltage: 415V AC
- Amperage: 10A
- Power: 4.5kA
- Poles: 3 Pole
- Configuration: C Curve
- Approval: Energy Safe Victoria
- Dimensions (H x L x W): 90mm x 100mm x 54mm
- Weight: 0.5 kg
Key Features
- 4.5kA breaking capacity for reliable overload and short circuit protection.
- 18mm pole width with ON/OFF indicators.
- Compatible with up to 25mm² cable and 35mm DIN rail mounting.
- Lockable toggles and pin/fork type busbar terminal connection.
Professional Installation Requirements
- Professional installation by an authorised electrician is recommended for optimal safety.
Applications
- Commercial: Ideal for various commercial applications requiring circuit protection.
Standards & Compliance
- Complies with AS/NZS 60898.1 and AS/NZS 60947.2 for safety and performance standards.
Environmental Benefits
- High-grade components ensure durability and reduce waste over time.
Warranty Information
5 Year In House Warranty covering replacement and installation by an authorised electrician.
Available Now
The Circuit Breaker 3 Pole 4.5kA 10A is available now for immediate purchase. Ideal for commercial applications requiring reliable circuit protection.
