MCB 3P 10A C Curve 6kA Breaking Capacity DIN Rail 415V Clipsal

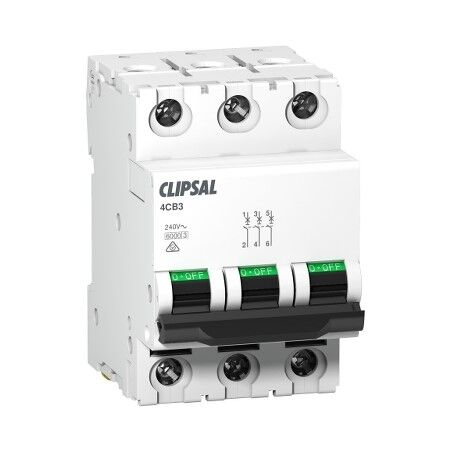

Clipsal 3-pole 10A MCB features C-curve tripping, 6kA breaking capacity and 415V rating. Ideal for switchboard circuit protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MCB Din 3P 10A 6KA | 6kA Breaking Capacity | C Curve Tripping | DIN Rail Mountable | by Clipsal
Brand: Clipsal
SKU: CLI4CB310/6
Alternatively Known As: 3 Pole MCB, 10A Miniature Circuit Breaker, Clipsal 3P MCB, DIN Rail Circuit Breaker, CLI4CB310/6
Technical Specifications
- Type: Miniature Circuit Breaker (MCB)
- Poles: 3 (Three-pole)
- Rated Current: 10A
- Breaking Capacity: 6kA
- Tripping Curve: C
- Rated Voltage: 415V AC
- Mounting: DIN rail
- Frequency: 50/60Hz
- Standards: IEC 60898-1
- Dimensions (H x L x W): 82mm x 75mm x 54mm
- Weight: 0.35 kg
Key Features
- Three-pole (3P) miniature circuit breaker
- Rated current: 10A
- Breaking capacity: 6kA
- C curve tripping characteristic for general protection
- DIN rail mountable for easy installation
- 415V AC rated voltage
- Reliable protection against overloads and short circuits
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 wiring rules and local regulations.
Applications
- Residential and commercial electrical distribution boards
- Industrial switchboards
- Protection of lighting and power circuits
- Suitable for use in multi-phase installations
Standards & Compliance
- Complies with AS/NZS 60898.1 for circuit breakers for overcurrent protection
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enhances electrical safety, reducing risk of fire and equipment damage
- Long operational life reduces replacement frequency and waste
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal MCB Din 3P 10A 6KA CLI4CB310/6 is available for immediate purchase. Ideal for use in residential, commercial, and industrial electrical distribution boards.
