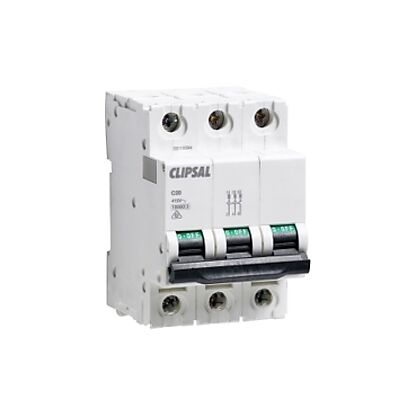

MCB 3P 25A C Curve 6kA Breaking Capacity DIN Rail 415V Clipsal
Clipsal 3-pole 25A MCB features C-curve tripping, 6kA breaking capacity and 415V rating. Ideal for switchboard circuit protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MCB Din 3P 25A 6KA | 6kA Breaking Capacity | C Curve Tripping | DIN Rail Mountable | by Clipsal
Brand: Clipsal
SKU: CLI4CB325/6
Alternatively Known As: 3 Pole MCB, 25A Circuit Breaker, Clipsal 3P MCB, Miniature Circuit Breaker 25A 6kA, CLI4CB325/6
Technical Specifications
- Type: Miniature Circuit Breaker (MCB)
- Poles: 3 (Three phase)
- Rated Current: 25A
- Breaking Capacity: 6kA
- Tripping Curve: C
- Rated Voltage: 415V AC
- Mounting: DIN rail
- Standards: IEC 60898-1
- Terminal Capacity: 25mm²
- Operating Temperature: -25°C to +60°C
- Dimensions (H x L x W): 82mm x 75mm x 54mm
- Weight: 0.35 kg
Key Features
- Three pole (3P) miniature circuit breaker
- Rated current: 25A
- Breaking capacity: 6kA
- C curve tripping characteristic for general applications
- DIN rail mountable for easy installation
- High quality Clipsal construction for reliability and safety
- Suitable for 415V AC systems
Professional Installation Requirements
- Installation must be carried out by a licensed electrician in accordance with AS/NZS 3000 and local regulations.
Applications
- Residential and commercial electrical distribution boards
- Industrial switchboards
- Protection of lighting and power circuits
- Suitable for use in panel boards and control panels
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 60898.1 – Electrical accessories – Circuit-breakers for overcurrent protection for household and similar installations
Environmental Benefits
- Improves electrical safety, reducing risk of fire and equipment damage
- Long operational life reduces replacement frequency and waste
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal MCB Din 3P 25A 6KA (CLI4CB325/6) is available for immediate purchase. Ideal for use in residential, commercial, and industrial switchboards requiring reliable circuit protection.
