Trade Discount 20%

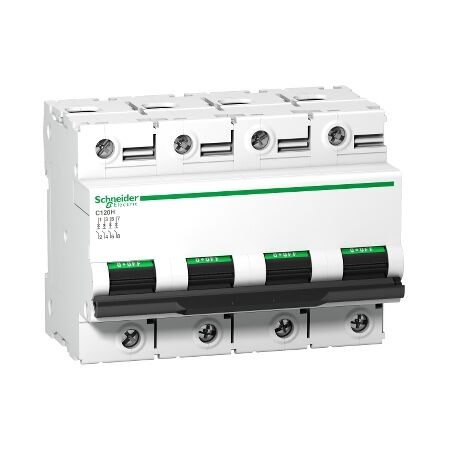

MCB 4P 80A 15kA IP20 415VAC Clipsal
Clipsal MCB AC features 380.415V AC 50 60Hz, 500V AC 50 60Hz and 6kV. 80A rated current at 30 °C. Thermal-magnetic trip unit technology.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Rated operational voltage: 380...415 V AC 50/60 Hz
- Rated insulation voltage: 500 V AC 50/60 Hz
- Rated impulse withstand voltage: 6 kV
- Mechanical durability: 20,000 cycles
- Electrical durability: 5,000 cycles
- IP degree of protection: IP20
- Pollution degree: 3
- Overvoltage category: IV
- Tropicalisation: 2
- Dimensions (H x L x W): 81mm x 73mm x 108mm
- Weight: 0.82 kg
Key Features
- 80A rated current at 30 °C
- 4 poles for enhanced protection
- Thermal-magnetic trip unit technology
- Breaking capacity of 15kA
- Toggle control type with ON/OFF indication
- Clip-on mounting for easy installation
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments
- Commercial: Small commercial installations
Standards & Compliance
- Complies with EN/IEC 60947-2 and EN/IEC 60898-1 for safety and performance standards.
Environmental Benefits
- Complies with environmental regulations and standards.
Warranty Information
18 months warranty against manufacturing defects.
Available Now
The Clipsal Acti9 Miniature Circuit Breaker (MCB) C120H 4P 80A is available now for immediate purchase. Ideal for residential and small commercial applications.
