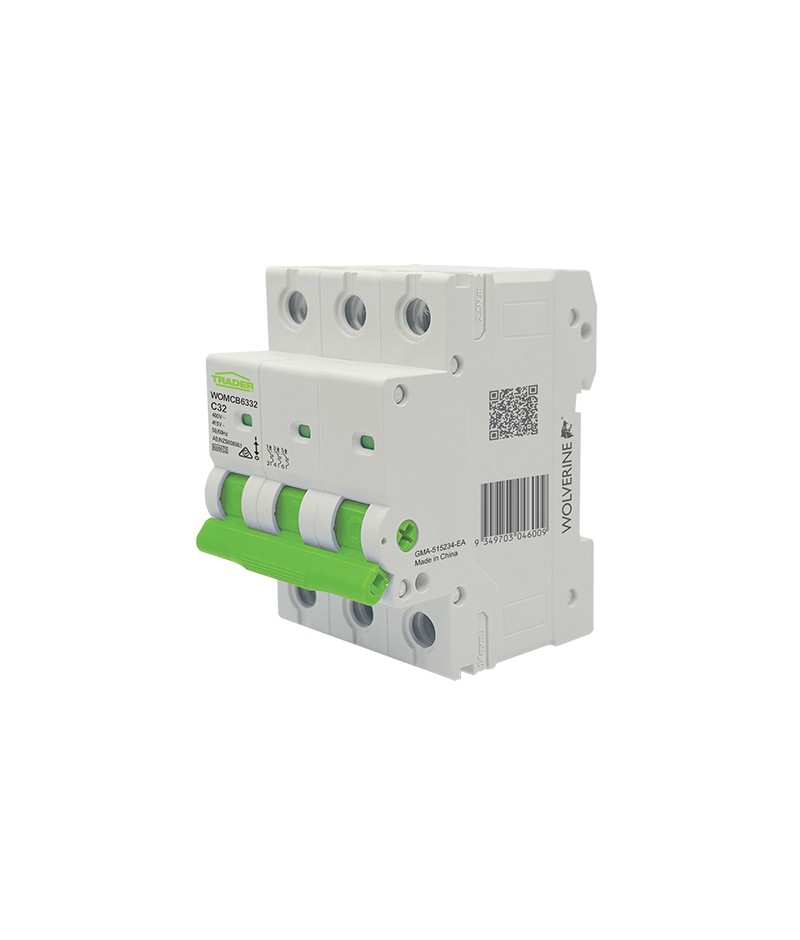

MCB 6kA 3 Pole 32A C Curve 415V Wolverine Trader
Trader MCB features 6kA breaking capacity, 3 pole C curve and 32A 415V rating. Ideal for three phase circuit protection in switchboards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Wolverine WOMCB6332 Miniature Circuit Breaker

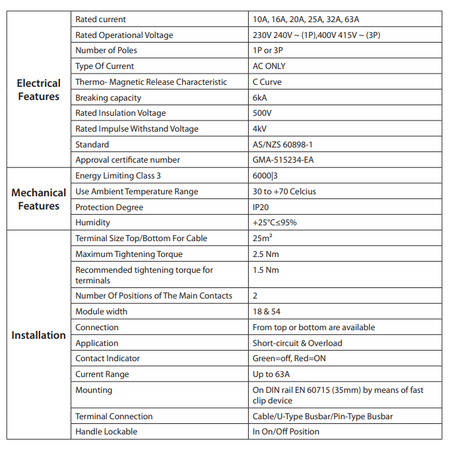

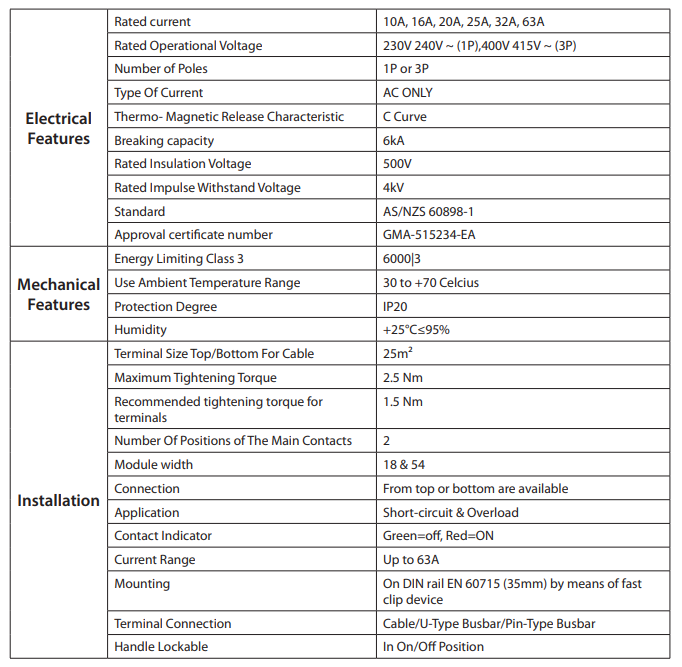

Technical Specifications
- Poles: 3‑Pole
- Rated Current: 32 A
- Tripping Characteristic: C‑Curve
- Rated Operational Voltage: 400 V / 415 V AC
- Breaking Capacity: 6 kA
- Rated Insulation Voltage: 500 V
- Impulse Withstand Voltage: 4 kV
- Terminal Connection: Cable/U‑Type Busbar/Pin‑Type Busbar
- Mounting: DIN Rail (35 mm)
- Dimensions (H x L x W): 82mm x 17.8mm x 62mm
- Weight: 0.36 kg
Key Features
- Fast overcurrent protection for both resistive and inductive loads with low inrush current
- Compact 3‑module DIN‑rail design for switchboard integration
- Line‑or‑load reversible installation (top or bottom wiring)
- Toggle colour coded for clear ON/OFF status
- Certified to AS/NZS 60898.1 standard
Applications
- Protection of three‑phase distribution circuits in residential, commercial or light industrial switchboards
- Overload and short‑circuit protection for lighting, motor circuits, or general distribution circuits
Standards & Compliance
- AS/NZS 60898.1
Environmental Benefits
- DIN‑rail mounting and modular design support compact switchboard layouts, reducing material use and waste
Warranty Information
10 Year Manufacturer’s Warranty (GSM Electrical / Trader Wolverine range)
Available Now
Available through authorised Australian electrical distributors and wholesalers.
