Trade Discount 25%

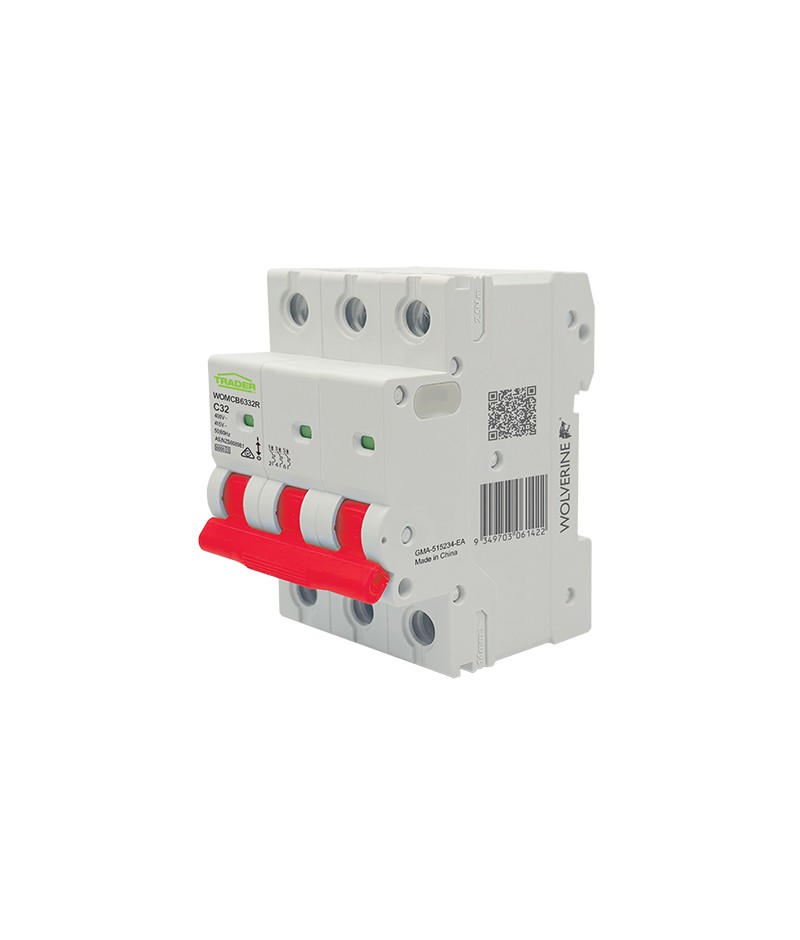

MCB 6kA 3P 32A Red Dolly Main Switch Rated Wolverine Trader
Trader MCB features 6kA breaking capacity, 32A 415V C curve rating and red dolly main switch marking. Ideal for use as a main switch in three phase boards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Wolverine MCB 3‑Pole 32 A C‑Curve Red Toggle Main Switch

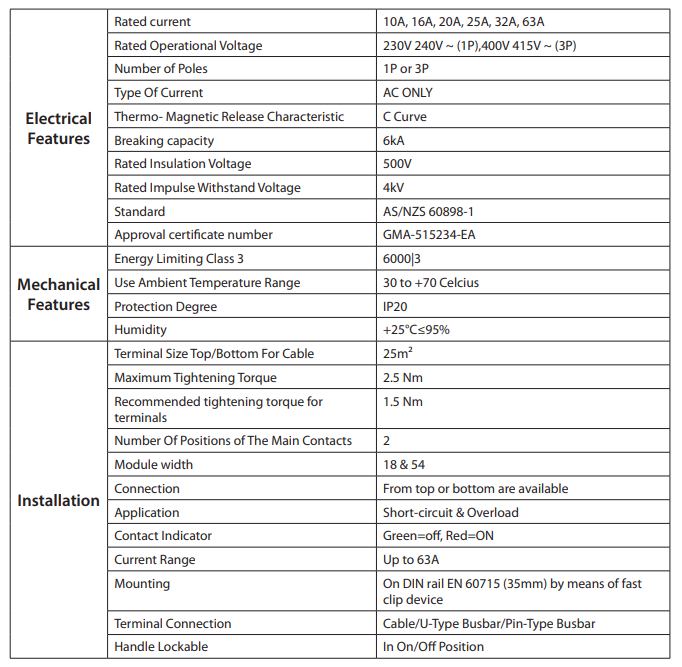

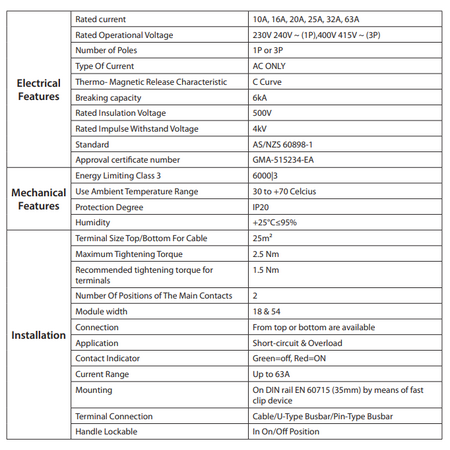

Technical Specifications
- Rated Current: 32 A
- Poles: 3‑Pole
- Breaking Capacity: 6 kA
- Tripping Characteristic: C‑Curve
- Rated Operational Voltage: 400 V–415 V AC
- Rated Insulation Voltage: 500 V
- Impulse Withstand Voltage: 4 kV
- Standard: AS/NZS 60898‑1
- Dimensions (H x L x W): 83mm x 54mm x 54mm
- Weight: 0.35 kg
Key Features
- Red toggle indicates suitability as a main switch
- C‑curve trip for protection of resistive and inductive loads
- 6 kA short‑circuit breaking capacity
- DIN‑rail mounting (35 mm EN 60715)
- Top or bottom cable connection
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000.
Applications
- Protection of three‑phase circuits against overload and short‑circuit
- Distribution board main switch for residential and commercial installations
- Isolation and circuit protection in three‑phase electrical systems
Standards & Compliance
- AS/NZS 60898‑1
Environmental Benefits
- Red toggle enhances clear visual state indication, reducing human error and potential waste from misuse
- Efficient hallmark toggling and reliable C‑curve protection help extend lifespan by preventing nuisance tripping
Warranty Information
Manufacturer provides a 10‑year warranty on Wolverine MCB series as per GSM Electrical documentation.
Available Now
Available through authorised Australian electrical distributors.
