Trade Discount 20%

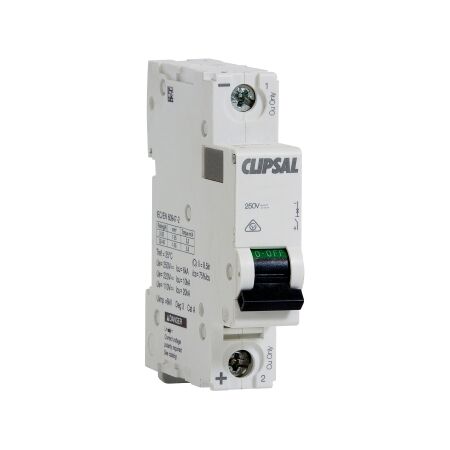

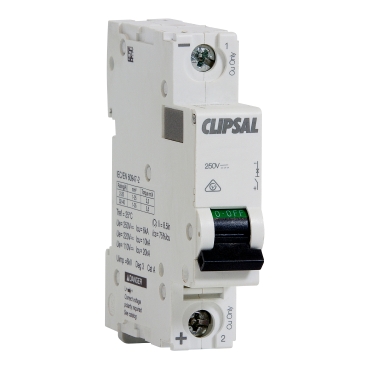

MCB Din 1P 25A 6KA | Single Pole Circuit Breaker | 6kA Breaking Capacity | DIN Rail Mountable | @Each of 1 | by GAF
The MCB Din 1P 25A 6KA is a reliable miniature circuit breaker designed for effective overload and short circuit protection. With a breaking capacity of 6kA and a C curve tripping characteristic, it's perfect for residential, commercial, and industrial applications. Easily mountable on DIN rails, this circuit breaker ensures safety and compliance with Australian standards, making it an essential component for any electrical distribution board.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MCB Din 1P 25A 6KA | Single Pole Circuit Breaker | 6kA Breaking Capacity | DIN Rail Mountable | @Each of 1 | by GAF
Brand: GAF
SKU: CLI4CB125/6
Alternatively Known As: Miniature Circuit Breaker, 1 Pole MCB, 25A MCB, DIN Rail MCB, 6kA MCB, Circuit Breaker 25A, Single Pole Breaker
Technical Specifications
- Type: Miniature Circuit Breaker (MCB)
- Poles: 1P (Single Pole)
- Rated Current: 25A
- Breaking Capacity: 6kA
- Tripping Curve: C
- Rated Voltage: 240V AC
- Mounting: DIN rail
- Standards: IEC/EN 60898-1
- Dimensions (H x L x W): 80mm x 70mm x 18mm
- Weight: 0.12 kg
Key Features
- Single pole (1P) miniature circuit breaker
- Rated current: 25A
- Breaking capacity: 6kA
- C curve tripping characteristic for general use
- DIN rail mountable for easy installation
- Reliable protection against overloads and short circuits
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with Australian standards and local regulations.
Applications
- Residential electrical distribution boards
- Commercial switchboards
- Industrial control panels
- Protection of lighting and power circuits
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 60898.1 – Electrical accessories – Circuit-breakers for overcurrent protection for household and similar installations
Environmental Benefits
- Enhances electrical safety, reducing risk of fire and equipment damage.
- Long operational life reduces replacement frequency and waste.
Warranty Information
12 months warranty against manufacturing defects.
Available Now
The GAF MCB Din 1P 25A 6KA is available for immediate purchase. Ideal for protecting electrical circuits in residential, commercial, and industrial switchboards.
