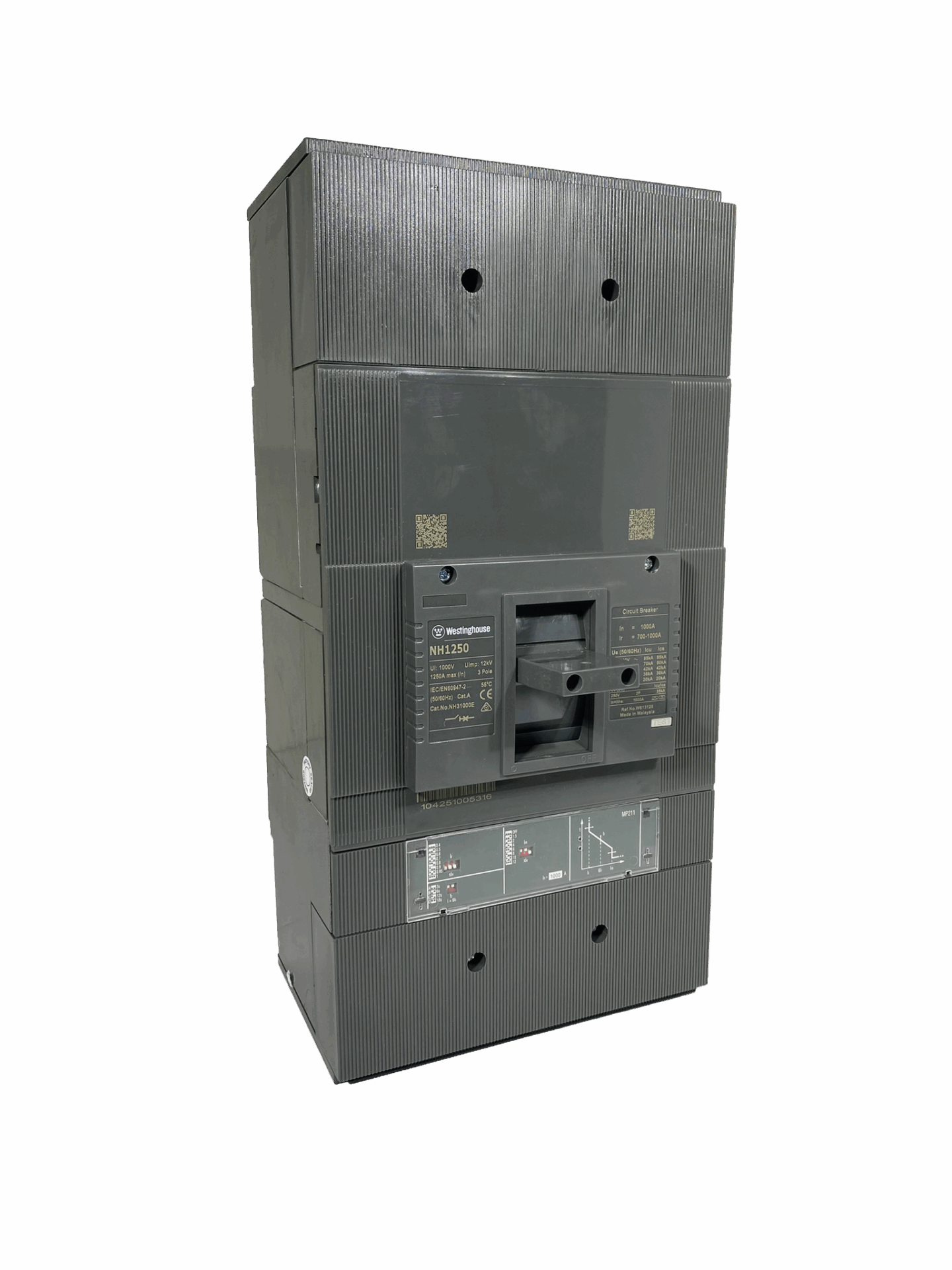

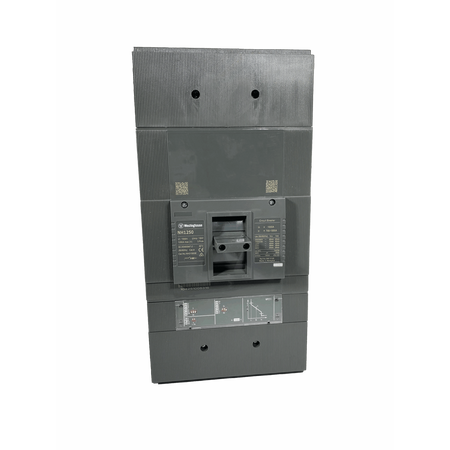

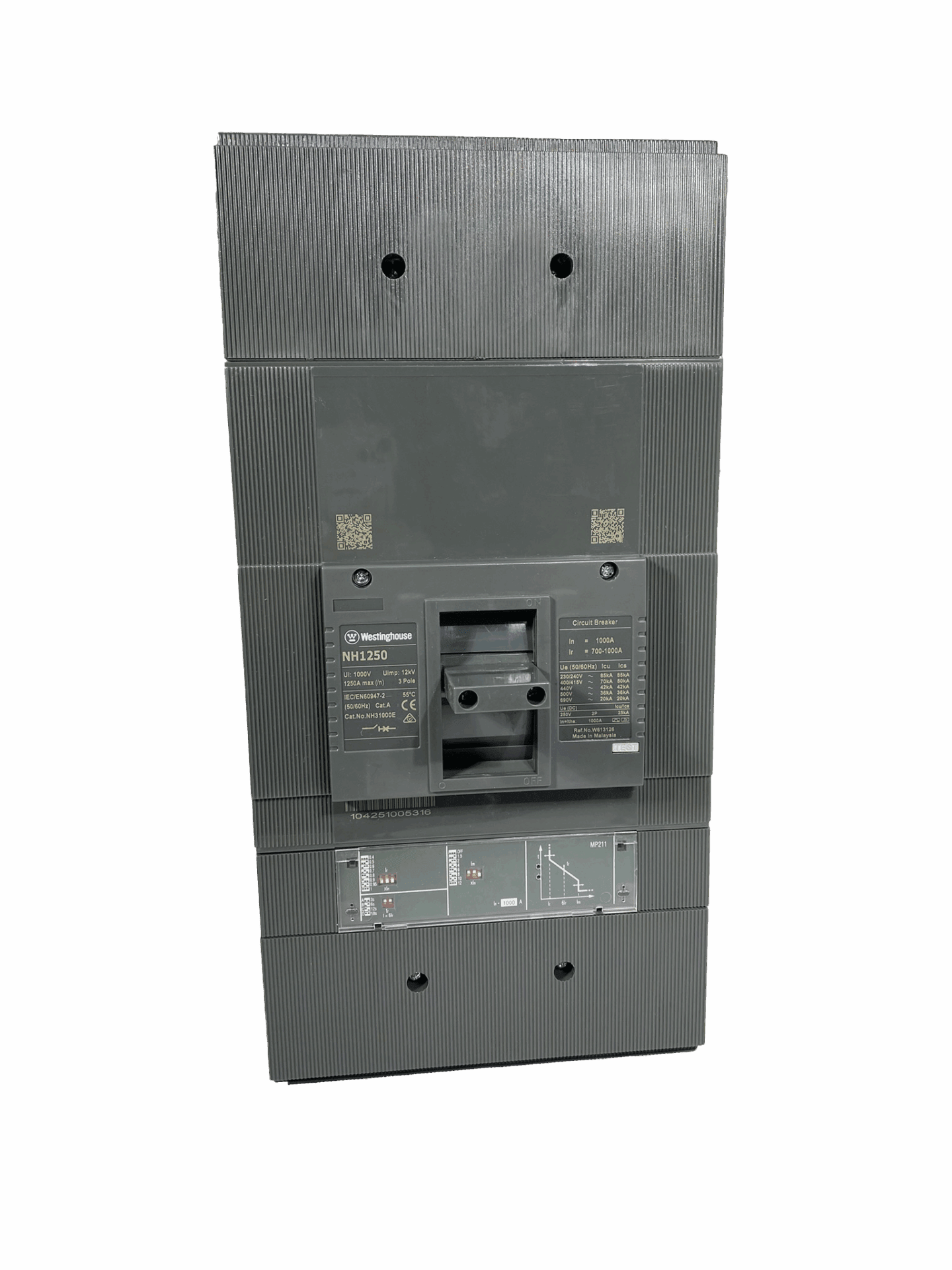

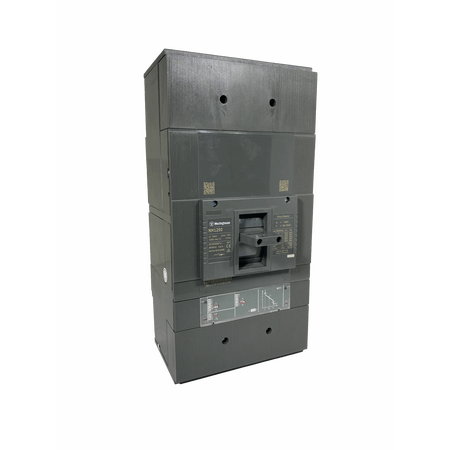

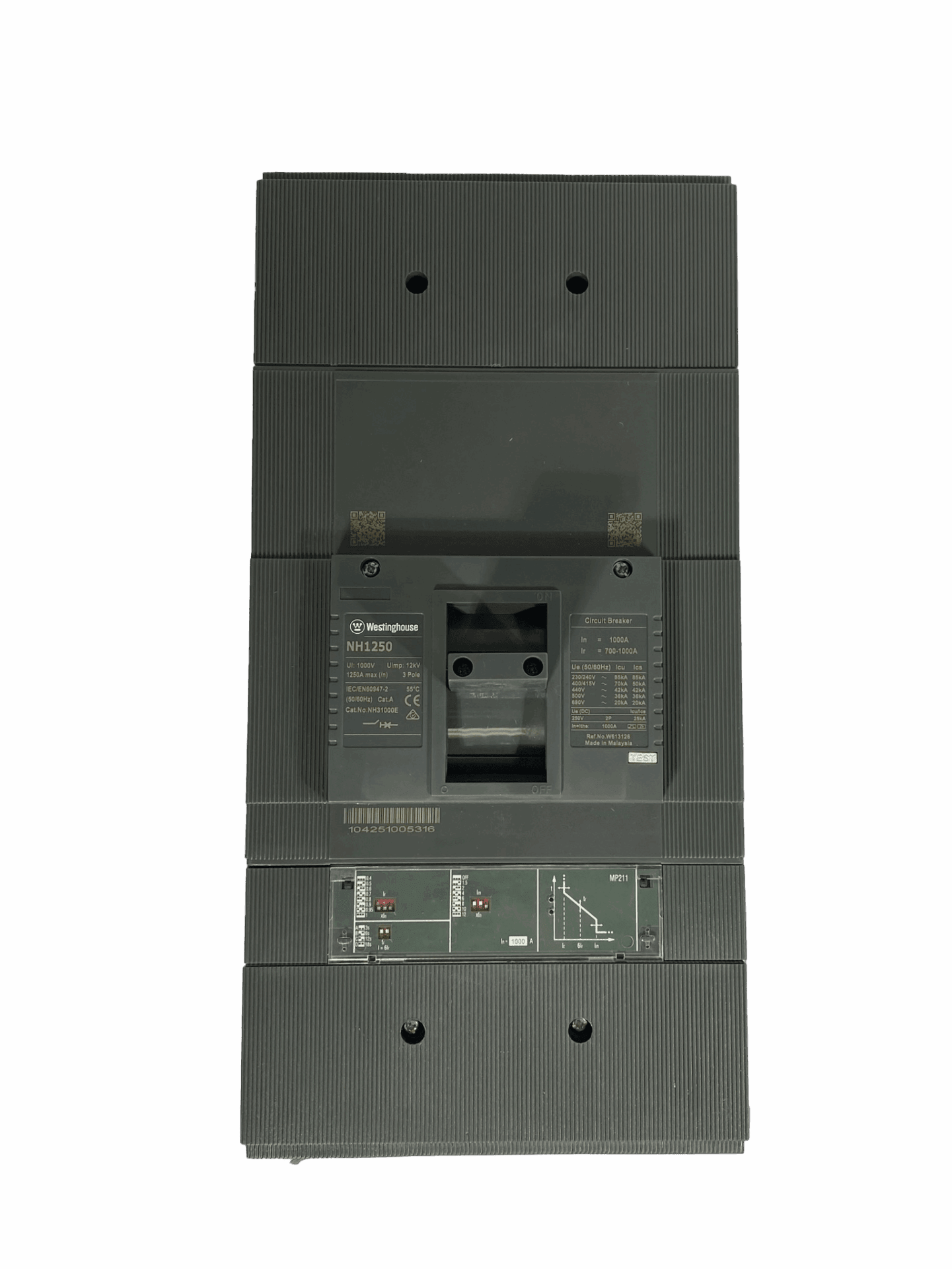

MCCB 1000A 3P 70kA Electronic N Frame Eltech

BRAND: Eltech
SKU: NH31000E
$3,678.10 List price: $4,904.20
+ −
30 Days Return Electricians Unlock Trade Access
Eltech MCCB features 1000A rating, 3-pole configuration, 70kA breaking capacity and electronic trip unit. Ideal for industrial switchboard protection.

Alternatively Known As: HC Series MCCB N‑Frame 1000 A Electronic Trip

Technical Specifications
  • Rated Current: 1000 A
  • Poles: 3‑pole
  • Trip Unit: Electronic
  • Short‑Circuit Breaking Capacity (Icu): 70 kA
  • Rated Voltage: 415 VAC
  • Rated Frequency: 50/60 Hz
  • Insulation Voltage (Ui): 1000 V
  • Impulse Withstand Voltage (Uimp): 12 kV
  • Mechanical Endurance: 5000 cycles
  • Electrical Endurance: 1000 cycles
  • Termination Tightening Torque: 28.5 Nm
  • Dimensions (H x L x W): 406mm x 140mm x 210mm
  • Weight: 21.3 kg
Key Features
  • High‑capacity 1000 A continuous current rating
  • Electronic trip unit for accurate, coordinated protection
  • High short‑circuit breaking capacity of 70 kA
  • Suitable for use as a main service protection device or feeder in large switchboards
  • Robust mechanical endurance (5000 cycles) and electrical endurance (1000 cycles)
Professional Installation Requirements
  • Installation must be performed by a licensed electrician in compliance with AS/NZS 3000 and manufacturer instructions.
Applications
  • Protection of large industrial or commercial switchboards
  • Main service protection in power distribution systems
  • Feeder protection for sub‑boards in demanding environments
Standards & Compliance
  • AS/NZS 60947.2 (Moulded‑case circuit‑breakers)
Environmental Benefits
  • Electronic trip unit enables selective protection reducing unnecessary downtime and component wear
  • High durability rated for thousands of operations reduces replacement frequency and waste
Warranty Information

Eltech offers a 7‑year warranty provided the product is purchased, installed by a licensed electrician, and installed per manufacturer’s instructions. Warranty valid on proof of purchase within Australia.

Available Now

Available through authorised Australian electrical distribution channels; local stock held in Melbourne and Sydney.
