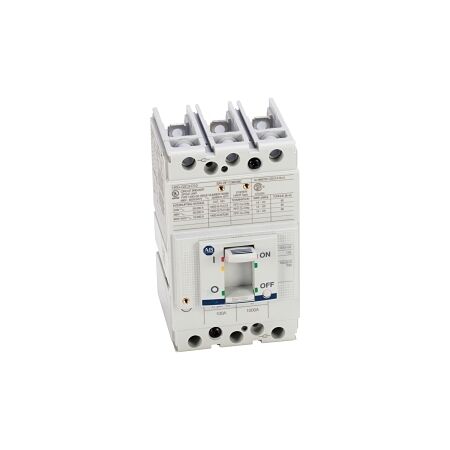

MCCB 100A 3P 36kA | Fixed Thermal Magnetic | G Frame by NHP

BRAND: NHP
SKU: 140GG2C3D10
$372.60 List price: $494.80
+ −
30 Days Return Delivery Options
MCCB with 100A rated current and 36kA breaking capacity—ideal for industrial and commercial power distribution. Built for reliable circuit protection, with fixed thermal and magnetic trip unit.

Product Name/Title: Allen-Bradley 140G MCCB G Frame 36kA 3P 100A Fixed Thermal Magnetic

Brand: NHP

SKU: 140GG2C3D10

Alternatively Known As: Moulded Case Circuit Breaker, MCCB, Circuit Breaker 100A

Technical Specifications
  • Rated Current: 100 A
  • Number of Poles: 3
  • Max Rated Operation Voltage: 690 V
  • Rated Ultimate Short Circuit Breaking Capacity: 36 kA
  • Rated Service Short Circuit Breaking Capacity: 36 kA
  • Type of Protection: Thermal/magnetic release
  • Trip Curve: Fixed thermal, fixed magnetic
  • Frame Size Rating: 160 A
  • Rated Frequency: 50-60 Hz
  • Rated Insulation Voltage: 800 V
  • Suitable for Isolation: Yes
  • Rated Short Circuit Breaking Capacity (ICU): 6 kA at 690 V AC
  • Rated Short Circuit Breaking Capacity (ICS): 4.5 kA at 690 V AC
  • Rated Impulse Withstand Voltage: 8 kV
  • Reverse Connection of Supply Possible: Yes
  • Electrical Life: 8000 cycles
  • Power Loss: 21 W
  • DIN Rail Mounting: Optional
  • Mechanical Life: 25000 cycles
  • Rated Surrounding Temperature: 40 °C
  • Maximum Operating Temperature: 75 °C
  • Storage Temperature: -40 to 80 °C
  • Max Altitude Before Derating: 2000 m
  • Dimensions (H x L x W): 130mm x 101mm x 76.2mm
  • Weight: 1.1 kg
Key Features
  • Fixed thermal and magnetic trip unit for reliable protection.
  • High breaking capacity of 36 kA at 415 V.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Power distribution and protection in manufacturing facilities
  • Commercial: Electrical systems in commercial buildings
  • General: Any application requiring reliable circuit protection
Standards & Compliance
  • Complies with AS/NZS 60950 for safety and performance standards.
Environmental Benefits
  • Designed for high efficiency, reducing energy loss during operation.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Allen-Bradley 140G MCCB G Frame 36kA 3P 100A Fixed Thermal Magnetic is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable circuit protection.
