MCCB 125 Frame 200kA 3P 125A | Thermal Magnetic | Adjustable Trip by NHP
MCCB with 125A current and 200kA breaking capacity—ideal for industrial and commercial power distribution. Built for reliable protection, with adjustable thermal and magnetic trip curves.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

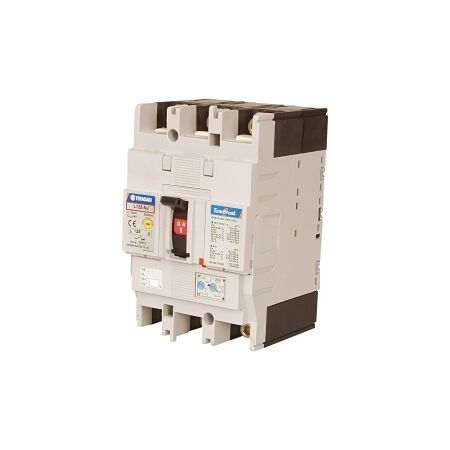

Product Name/Title: Terasaki TemBreak 2 MCCB 125 Frame 200kA 3P 125A Thermal Magnetic
Brand: NHP
SKU: L125NJ3125
Alternatively Known As: MCCB, Molded Case Circuit Breaker, Thermal Magnetic Circuit Breaker
Technical Specifications
- Rated Current: 125 A
- Number of Poles: 3
- Max Rated Operation Voltage: 690 V
- Rated Ultimate Short Circuit Breaking Capacity: 200 kA
- Rated Service Short Circuit Breaking Capacity: 150 kA
- Rated Insulation Voltage: 800 V
- Rated Impulse Withstand Voltage: 8 kV
- Electrical Life: 10,000 cycles
- Mechanical Life: 20,000 cycles
- Cable Cross Section Range: 35-185 mm²
- Pollution Degree: 3
- Max Operating Temperature: 70 °C
- Dimensions (H x L x W): 165mm x 151mm x 105mm
- Weight: 2.4 kg
Key Features
- Thermal/magnetic release for reliable protection.
- Adjustable thermal and magnetic trip curves.
- High short-circuit breaking capacity of 200 kA.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical panels in commercial buildings
- General: Protection of electrical circuits in various applications
Standards & Compliance
- Complies with relevant Australian standards for electrical safety.
Environmental Benefits
- Designed for high performance and reliability in various environmental conditions.
Warranty Information
Standard warranty applies, please check with the manufacturer for details.
Available Now
The Terasaki TemBreak 2 MCCB 125 Frame 200kA 3P 125A Thermal Magnetic is available now for immediate purchase. Ideal for industrial and commercial power distribution.
Non-Returnable & Non-Cancellable
