MCCB 1250 Frame 70kA 3P 1250A | Electronic Release | Adjustable Protection by NHP
MCCB with 1250 frame and 70kA breaking capacity—ideal for industrial and commercial power distribution. Built for precise protection with electronic release and adjustable overload settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

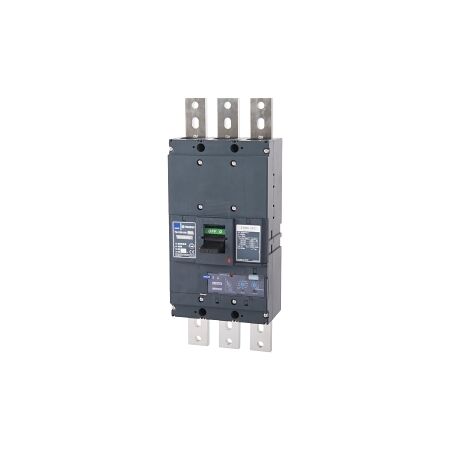

Product Name/Title: Terasaki TemBreak PRO MCCB 1250 Frame 70kA 3P 1250A Basic Electronic
Brand: NHP
SKU: B1250H31250BE
Alternatively Known As: MCCB, Molded Case Circuit Breaker, Circuit Breaker 1250A
Technical Specifications
- Rated Current: 1250 A
- Number of Poles: 3
- Max Rated Operation Voltage: 690 V
- Rated Ultimate Short Circuit Breaking Capacity: 70 kA
- Rated Service Short Circuit Breaking Capacity: 50 kA
- Type of Protection Trip Unit: Electronic release
- Trip Curve: LSI
- Frame Size Rating: 1250 A
- Long Time Overload Protection Adjustment Range: 500-1250 A
- Instantaneous Protection Adjustment Range: 3125-15000 A
- Rated Frequency: 50-60 Hz
- Rated Insulation Voltage: 800 V
- Short Time Withstand Current: 15 kA
- Power Loss: 270 W
- Mechanical Life: 5000 cycles
- Rated Surrounding Temperature: 50 °C
- Maximum Operating Temperature: 70 °C
- Dimensions (H x L x W): 530mm x 171mm x 210mm
- Weight: 19.8 kg
Key Features
- Electronic release for precise protection settings.
- High breaking capacity of 70 kA at 415 V.
- Adjustable overload and short-circuit protection.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical systems in large buildings
- General: Protection of electrical circuits from overloads and short circuits
Standards & Compliance
- Complies with AS/NZS IEC 60947.2 for safety and performance standards.
Environmental Benefits
- Efficient design reduces energy loss and enhances system reliability.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Terasaki TemBreak PRO MCCB 1250 Frame 70kA 3P 1250A Basic Electronic is available now for immediate purchase. Ideal for industrial and commercial electrical systems.
