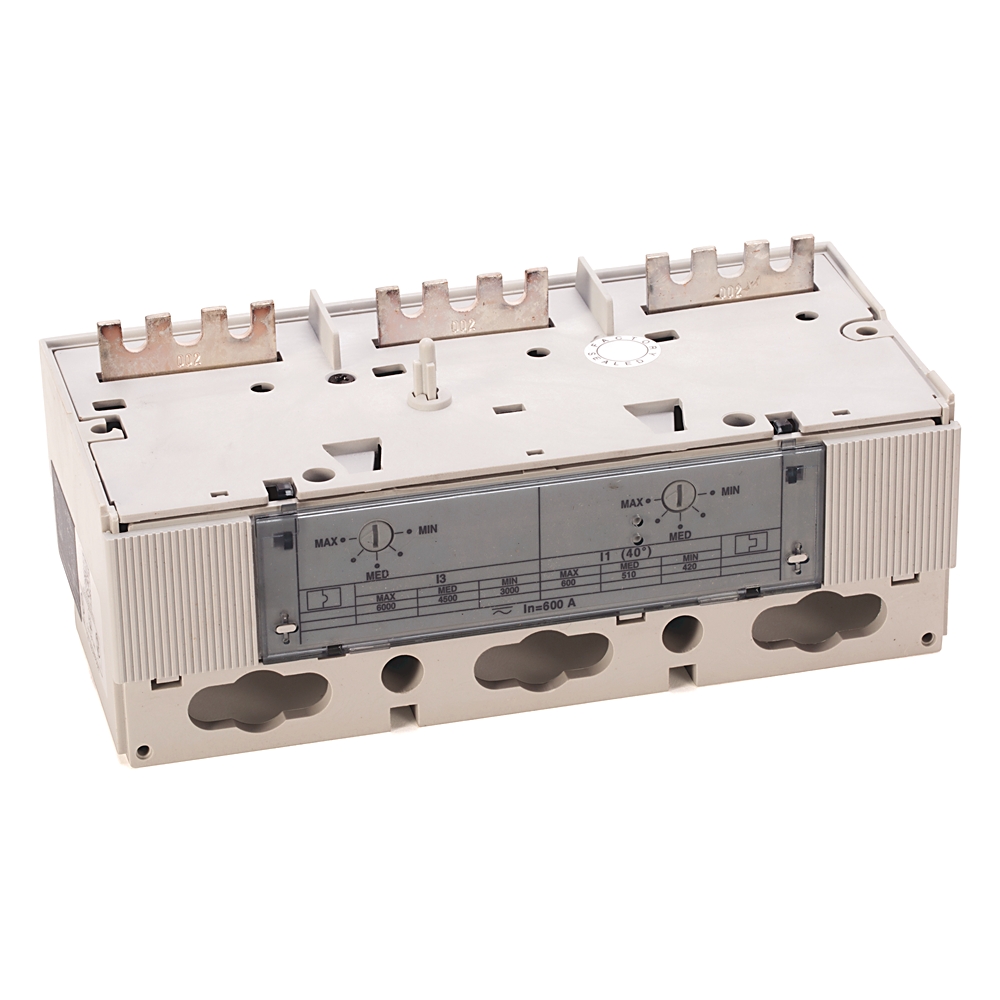

MCCB 140G M Frame Trip Unit 3P 800A Electronic LSIG High Interrupting Capacity Advanced Protection by Allen-Bradley
MCCB 140G M Frame Trip Unit 3P 800A is designed for industrial electrical distribution systems, featuring an advanced electronic LSIG trip unit for precise protection. With a high interrupting capacity, it's perfect for commercial electrical panels and motor control centers, ensuring reliable power management and safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: MCCB 140G M Frame 3P 800A Electronic Circuit Breaker, Allen-Bradley 800A M Frame MCCB, Electronic LSIG Trip Unit MCCB
Technical Specifications
- Poles: 3
- Current Rating: 800A
- Trip Unit Type: Electronic LSIG (Long-time, Short-time, Instantaneous, Ground-fault)
- Frame Type: M Frame
- Interrupting Capacity: High interrupting capacity suitable for industrial applications
- Mounting: Panel or surface mount
- Dimensions (H x L x W): 250mm x 150mm x 150mm
- Weight: 15 kg
Key Features
- 3-pole molded case circuit breaker
- 800A current rating
- Electronic LSIG (Long-time, Short-time, Instantaneous, Ground-fault) trip unit
- M Frame design for medium to high power applications
- Advanced electronic trip unit for precise protection
Professional Installation Requirements
- Installation must be performed by a licensed electrician experienced with high-current circuit breakers to ensure safety and compliance.
Applications
- Industrial electrical distribution systems
- Commercial electrical panels
- Motor control centers
- Power protection and management
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Electronic trip unit improves energy efficiency by reducing nuisance trips and optimizing protection.
- Durable design reduces waste and replacement frequency.
Warranty Information
1 year limited warranty covering manufacturing defects.
Available Now
The Allen-Bradley MCCB 140G M Frame Trip Unit 3P 800A Electronic LSIG MM is available for immediate purchase, ideal for industrial and commercial electrical protection applications.
