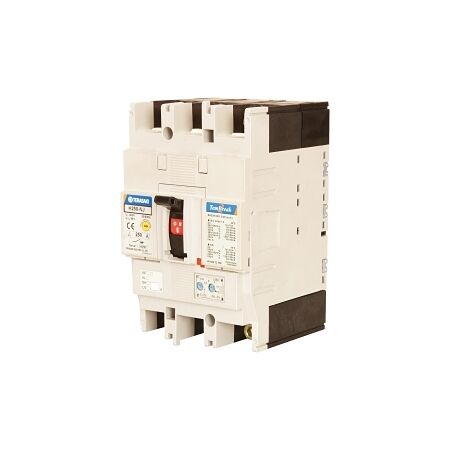

Terasaki TemBreak 2 MCCB 160 Frame 125kA 3P 160A Thermal Magnetic

MCCB 160 Frame 125kA 3P 160A | Thermal Magnetic | Adjustable Trip by NHP

BRAND: NHP

SKU: H160NJ3160

$3,747.50 List price: $4,976.20

+ −

30 Days Return Delivery Options

MCCB with 160A current and 125kA breaking capacity—ideal for industrial and commercial power distribution. Built for reliable protection, with adjustable thermal and magnetic trip curves.

Description
Attachments

Product Name/Title: Terasaki TemBreak 2 MCCB 160 Frame 125kA 3P 160A Thermal Magnetic

Brand: NHP

SKU: H160NJ3160

Alternatively Known As: MCCB, Molded Case Circuit Breaker, Thermal Magnetic Circuit Breaker

Technical Specifications

Rated Current: 160 A
Number of Poles: 3
Max Rated Operation Voltage: 690 V
Rated Ultimate Short Circuit Breaking Capacity: 125 kA
Rated Service Short Circuit Breaking Capacity: 80 kA
Rated Insulation Voltage: 800 V
Rated Impulse Withstand Voltage: 8 kV
Electrical Life: 10,000 cycles
Mechanical Life: 20,000 cycles
Cable Cross Section Range: 35-185 mm²
Pollution Degree: 3
Max Operating Temperature: 70 °C
Dimensions (H x L x W): 165mm x 151mm x 105mm
Weight: 1 kg

Key Features

Thermal/magnetic release for reliable protection.
Adjustable thermal and magnetic trip curves.
High short-circuit breaking capacity of 125 kA.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Power distribution in manufacturing facilities
Commercial: Electrical systems in commercial buildings
General: Protection of electrical circuits in various applications

Standards & Compliance

Complies with relevant Australian standards for electrical safety.

Environmental Benefits

Designed for high performance and reliability in various environmental conditions.

Warranty Information

Standard warranty applies.

Available Now

The Terasaki TemBreak 2 MCCB 160 Frame 125kA 3P 160A Thermal Magnetic is available now for immediate purchase. Ideal for industrial and commercial electrical systems.

Non-Returnable & Non-Cancellable

H160NJ3160-AU-TB2-MCCB-Datasheet.pdf (H160NJ3160-AU-TB2-MCCB-Datasheet.pdf, 2,153 Kb) [Download]
