MCCB 160 Frame 125kA 3P | Adjustable Thermal & Magnetic | 50A by NHP
MCCB with 160 frame and 125kA breaking capacity, featuring adjustable thermal and magnetic trip settings—ideal for industrial power distribution. Built for safety and reliability, with professional installation recommended.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

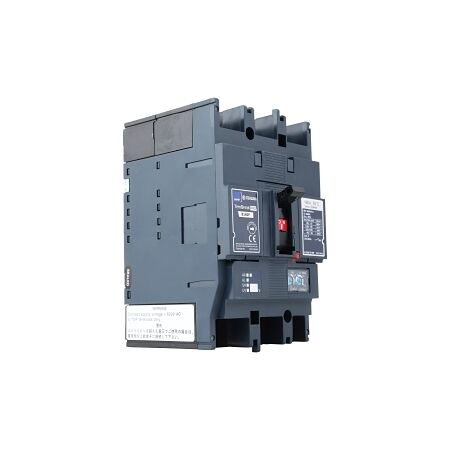

Product Name/Title: Terasaki TemBreak PRO MCCB 160 Frame 125kA 3P 50A Adj. Thermal Adj. Magnetic
Brand: NHP
SKU: B160P3350TM
Alternatively Known As: MCCB, Molded Case Circuit Breaker, Circuit Breaker 50A, Terasaki Circuit Breaker
Technical Specifications
- Rated Current: 50 A
- Number of Poles: 3
- Max Rated Operation Voltage: 690 V
- Rated Ultimate Short Circuit Breaking Capacity: 125 kA
- Rated Service Short Circuit Breaking Capacity: 80 kA
- Type of Protection: Thermal/magnetic release
- Trip Curve: Adjustable thermal, adjustable magnetic
- Frame Size Rating: 160 A
- Long Time Overload Protection Adjustment Range: 32-50 A
- Instantaneous Protection Adjustment Range: 300-600 A
- Rated Frequency: 50-60 Hz
- Rated Insulation Voltage: 800 V
- Rated Short Circuit Breaking Capacity: 20 kA at 690 V AC
- Rated Impulse Withstand Voltage: 8 kV
- Mechanical Life: 20,000 cycles
- Electrical Life: 10,000 cycles
- Dimensions (H x L x W): 165mm x 151mm x 105mm
- Weight: 1 kg
Key Features
- Adjustable thermal and magnetic trip settings for customized protection.
- High breaking capacity of 125 kA at 415 V for enhanced safety.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution and protection in commercial and industrial settings
- General: Suitable for various electrical installations requiring circuit protection
Standards & Compliance
- Complies with AS/NZS IEC 60947.2 for safety and performance standards.
Environmental Benefits
- Designed for long electrical life, reducing waste and the need for frequent replacements.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Terasaki TemBreak PRO MCCB 160 Frame 125kA 3P 50A is available now for immediate purchase. Ideal for industrial applications requiring reliable circuit protection.
