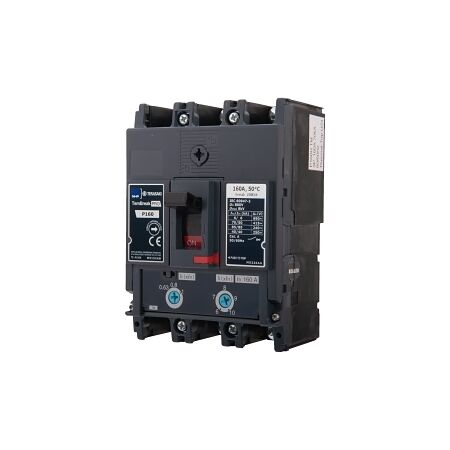

Terasaki TemBreak PRO MCCB 160 Frame 200kA 3P 63A Adj. Thermal Adj. Magnetic

MCCB 160 Frame 200kA 3P 63A | Adjustable Thermal & Magnetic | Compact Design by NHP

BRAND: NHP

SKU: B160R3363TM

$1,378.50 List price: $1,830.50

+ −

30 Days Return Delivery Options

MCCB with 160 frame and 200kA breaking capacity, featuring adjustable thermal and magnetic trip settings—ideal for industrial and commercial electrical protection. Built for high performance, with compact design for easy installation.

Description
Attachments

Product Name/Title: Terasaki TemBreak PRO MCCB 160 Frame 200kA 3P 63A Adj. Thermal Adj. Magnetic

Brand: NHP

SKU: B160R3363TM

Alternatively Known As: MCCB, Circuit Breaker, Thermal Magnetic Circuit Breaker

Technical Specifications

Rated Current: 63 A
Number of Poles: 3
Max Rated Operation Voltage: 690 V
Rated Ultimate Short Circuit Breaking Capacity: 200 kA
Rated Service Short Circuit Breaking Capacity: 135 kA
Type of Protection: Thermal/magnetic release
Trip Curve: Adjustable thermal, adjustable magnetic
Frame Size Rating: 160 A
Long Time Overload Protection Adjustment Range: 40-63 A
Instantaneous Protection Adjustment Range: 378-756 A
Rated Frequency: 50-60 Hz
Rated Insulation Voltage: 800 V
Rated Short Circuit Breaking Capacity (ICU): 25 kA
Rated Short Circuit Breaking Capacity (ICS): 20 kA
Rated Impulse Withstand Voltage: 8 kV
Over Voltage Category: IV
Electrical Life: 10,000 cycles
Mechanical Life: 20,000 cycles
Cable Cross Section Range: 35-185 mm²
Dimensions (H x L x W): 165mm x 151mm x 105mm
Weight: 1 kg

Key Features

Adjustable thermal and magnetic trip settings for customized protection.
High short-circuit breaking capacity of 200 kA at 415 V.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Power distribution in manufacturing facilities
Commercial: Electrical protection in commercial buildings
General: Suitable for various electrical installations requiring circuit protection

Standards & Compliance

Complies with AS/NZS IEC 60947.2 for safety and performance standards.

Environmental Benefits

Designed for energy efficiency, reducing power loss during operation.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Terasaki TemBreak PRO MCCB 160 Frame 200kA 3P 63A is available now for immediate purchase. Ideal for industrial and commercial electrical protection.

Non-Returnable & Non-Cancellable

B160R3363TM-AU-TBP-MCCB-160AF-Datasheet.pdf (B160R3363TM-AU-TBP-MCCB-160AF-Datasheet.pdf, 1,050 Kb) [Download]
