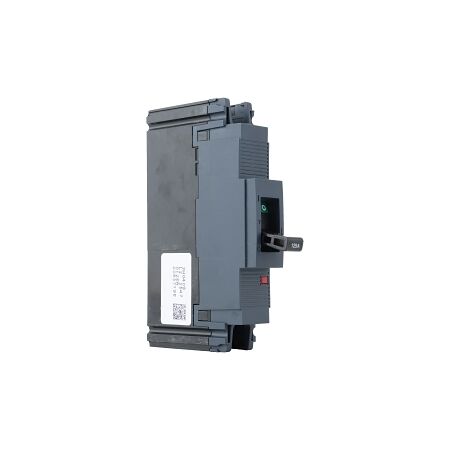

Terasaki TemBreak PRO MCCB 160 Frame 25kA 1P 100A Fix. Thermal Fix. Magnetic

MCCB 160 Frame 25kA 1P 100A | Thermal & Magnetic | Compact Design by NHP

BRAND: NHP

SKU: A160E11100FF

$139.60 List price: $185.30

+ −

30 Days Return Delivery Options

MCCB with 160 frame and 25kA breaking capacity—ideal for industrial and commercial power distribution. Built for reliable protection, with thermal and magnetic trip curves and compact design for easy installation.

Description
Attachments

Product Name/Title: Terasaki TemBreak PRO MCCB 160 Frame 25kA 1P 100A Fix. Thermal Fix. Magnetic

Brand: NHP

SKU: A160E11100FF

Alternatively Known As: MCCB, Molded Case Circuit Breaker, Circuit Breaker 100A

Technical Specifications

Rated Current: 100 A
Number of Poles: 1
Max Rated Operation Voltage: 240 V
Rated Ultimate Short Circuit Breaking Capacity: 25 kA
Rated Service Short Circuit Breaking Capacity: 13 kA
Rated Insulation Voltage: 690 V
Rated Frequency: 50-60 Hz
Electrical Life: 10,000 cycles
Mechanical Life: 20,000 cycles
Cable Cross Section Range: 1.5-35 mm²
Pollution Degree: 3
Rated Surrounding Temperature: 50 °C
Maximum Operating Temperature: 70 °C
Dimensions (H x L x W): 130mm x 95mm x 25mm
Weight: 0.3 kg

Key Features

Thermal/magnetic release for reliable protection.
Fixed thermal and magnetic trip curves.
Suitable for isolation and reverse connection.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Power distribution in manufacturing facilities
Commercial: Electrical panels in commercial buildings
General: Protection of electrical circuits in various applications

Standards & Compliance

Complies with AS/NZS IEC 60947.2 for safety and performance standards.

Environmental Benefits

Designed for long electrical life, reducing waste and resource consumption.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Terasaki TemBreak PRO MCCB 160 Frame 25kA 1P 100A is available now for immediate purchase. Ideal for industrial and commercial electrical applications.

A160E11100FF-AU-TBP-MCCB-160AF-Datasheet.pdf (A160E11100FF-AU-TBP-MCCB-160AF-Datasheet.pdf, 269 Kb) [Download]
