MCCB 160 Frame 25kA 1P 32A | Fixed Thermal & Magnetic | Compact Design by NHP
MCCB with 160 frame size and 25kA breaking capacity—ideal for industrial and commercial power distribution. Built for reliable protection, with fixed thermal and magnetic trip units and compact design.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

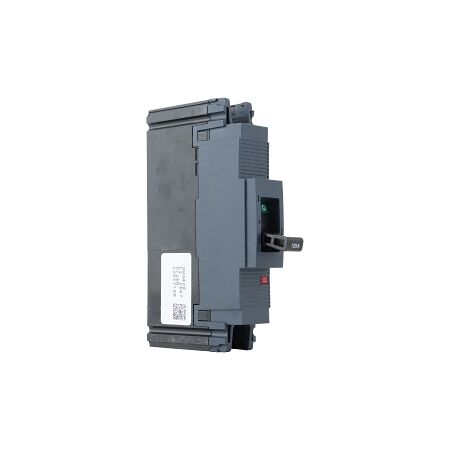

Product Name/Title: Terasaki TemBreak PRO MCCB 160 Frame 25kA 1P 32A Fix. Thermal Fix. Magnetic
Brand: NHP
SKU: A160E1132FF
Alternatively Known As: MCCB, Circuit Breaker, Thermal Magnetic Circuit Breaker
Technical Specifications
- Rated Current: 32 A
- Number of Poles: 1
- Max Rated Operation Voltage: 240 V
- Rated Ultimate Short Circuit Breaking Capacity: 25 kA
- Rated Service Short Circuit Breaking Capacity: 13 kA
- Type of Protection Trip Unit: Thermal/magnetic release
- Trip Curve: Fixed thermal, fixed magnetic
- Rated Frequency: 50-60 Hz
- Rated Insulation Voltage: 690 V
- Electrical Life: 10,000 cycles
- Mechanical Life: 20,000 cycles
- Cable Cross Section Range: 1.5-35 mm²
- Pollution Degree: 3
- Rated Surrounding Temperature: 50 °C
- Maximum Operating Temperature: 70 °C
- Dimensions (H x L x W): 130mm x 95mm x 25mm
- Weight: 0.3 kg
Key Features
- Fixed thermal and magnetic trip unit for reliable protection.
- High breaking capacity of 25 kA for enhanced safety.
- Compact design with a frame size rating of 160 A.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical installations in commercial buildings
- General: Protection of electrical circuits in various applications
Standards & Compliance
- Complies with AS/NZS IEC 60947.2 for safety and performance standards.
Environmental Benefits
- Designed for long electrical life, reducing waste and resource consumption.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Terasaki TemBreak PRO MCCB 160 Frame 25kA 1P 32A is available now for immediate purchase. Ideal for industrial and commercial electrical installations.
