Home/Electrical/Switchgear/Circuit Breakers/Circuit Breakers A/C/MCCB 160 Frame 25kA 3P 125A | Adjustable Thermal | Fixed Magnetic by NHP

Trade Discount 25%

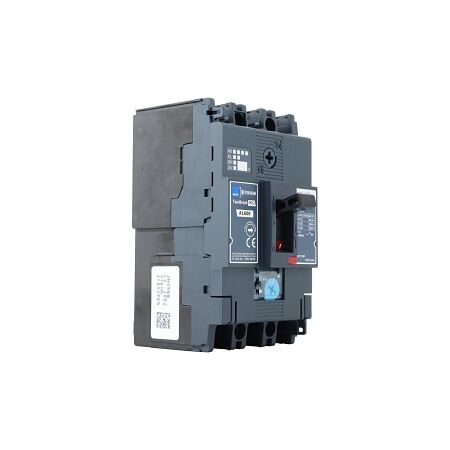

Terasaki TemBreak PRO MCCB 160 Frame 25kA 3P 125A Adj. Thermal Fix. Magnetic

MCCB 160 Frame 25kA 3P 125A | Adjustable Thermal | Fixed Magnetic by NHP

BRAND: NHP

SKU: A160E13125TF

$445.50 List price: $591.60

+ −

30 Days Return Delivery Options

MCCB with 160 frame size and 25kA breaking capacity—ideal for industrial and commercial electrical protection. Built for enhanced safety, with adjustable thermal and fixed magnetic trip unit.

Description
Attachments

Product Name/Title: Terasaki TemBreak PRO MCCB 160 Frame 25kA 3P 125A Adj. Thermal Fix. Magnetic

Brand: NHP

SKU: A160E13125TF

Alternatively Known As: MCCB, Molded Case Circuit Breaker, Circuit Breaker 125A

Technical Specifications

Rated Current: 125 A
Number of Poles: 3
Max Rated Operation Voltage: 525 V
Rated Ultimate Short Circuit Breaking Capacity: 25 kA
Rated Service Short Circuit Breaking Capacity: 13 kA
Type of Protection Trip Unit: Thermal/magnetic release
Trip Curve: Adjustable thermal, fixed magnetic
Frame Size Rating: 160 A
Long Time Overload Protection Adjustment Range: 80-125 A
Rated Frequency: 50-60 Hz
Rated Insulation Voltage: 690 V
Rated Impulse Withstand Voltage: 8 kV
Mechanical Life: 20000 cycles
Electrical Life: 10000 cycles
Cable Cross Section Range: 1.5-70 mm²
Dimensions (H x L x W): 130mm x 95mm x 75mm
Weight: 0.8 kg

Key Features

Adjustable thermal and fixed magnetic trip unit for enhanced protection.
High breaking capacity of 25 kA at 415 V.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Power distribution in manufacturing facilities
Commercial: Electrical panels in commercial buildings
General: Protection of electrical circuits in various applications

Standards & Compliance

Complies with AS/NZS IEC 60947.2 for safety and performance standards.

Environmental Benefits

Designed for high efficiency, reducing energy loss and improving overall system performance.

Warranty Information

2 years warranty against manufacturing defects.

Available Now

The Terasaki TemBreak PRO MCCB 160 Frame 25kA 3P 125A is available now for immediate purchase. Ideal for industrial and commercial electrical protection.

A160E13125TF-AU-TBP-MCCB-160AF-Datasheet.pdf (A160E13125TF-AU-TBP-MCCB-160AF-Datasheet.pdf, 927 Kb) [Download]
