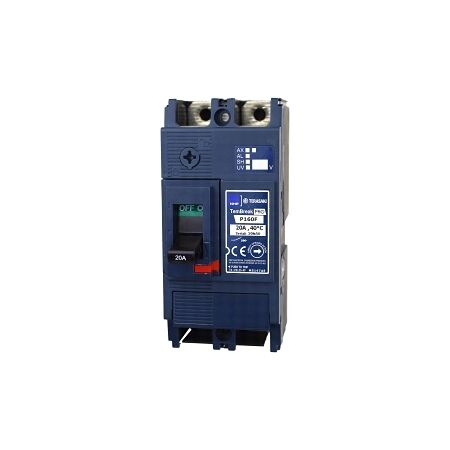

Terasaki TemBreak PRO MCCB 160 Frame 36kA 2P 20A Fix. Therm. Fix. Mag.

MCCB 160 Frame 36kA 2P 20A | Fixed Thermal & Magnetic | Compact Design by NHP

BRAND: NHP

SKU: P160F2220FF

$354.80 List price: $471.20

+ −

30 Days Return Delivery Options

MCCB with 160 frame and 36kA breaking capacity—ideal for industrial power distribution. Built for reliable circuit protection, with fixed thermal and magnetic trip curves.

Description
Attachments

Product Name/Title: Terasaki TemBreak PRO MCCB 160 Frame 36kA 2P 20A Fix. Therm. Fix. Mag.

Brand: NHP

SKU: P160F2220FF

Alternatively Known As: MCCB, Circuit Breaker, Thermal Magnetic Circuit Breaker

Technical Specifications

Rated Current: 20 A
Number of Poles: 2
Max Rated Operation Voltage: 690 V
Rated Ultimate Short Circuit Breaking Capacity: 36 kA
Rated Service Short Circuit Breaking Capacity: 36 kA
Rated Insulation Voltage: 800 V
Rated Frequency: 50-60 Hz
Electrical Life: 30,000 cycles
Mechanical Life: 50,000 cycles
Cable Cross Section Range: 1.5-70 mm²
Pollution Degree: 3
Rated Surrounding Temperature: 45 °C
Maximum Operating Temperature: 70 °C
Dimensions (H x L x W): 130mm x 95.5mm x 60mm
Weight: 0.7 kg

Key Features

Thermal/magnetic release for reliable protection
Fixed thermal and magnetic trip curve
Rated short circuit breaking capacity of 36 kA

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Power distribution and protection in commercial and industrial settings
General: Suitable for various electrical installations requiring circuit protection

Standards & Compliance

Complies with AS/NZS IEC 60947.2 for safety and performance standards.

Environmental Benefits

Designed for high efficiency, reducing energy loss during operation.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Terasaki TemBreak PRO MCCB 160 Frame 36kA 2P 20A is available now for immediate purchase. Ideal for industrial applications requiring reliable circuit protection.

Non-Returnable & Non-Cancellable

P160F2220FF-AU-TBP-MCCB-160AF-Datasheet.pdf (P160F2220FF-AU-TBP-MCCB-160AF-Datasheet.pdf, 825 Kb) [Download]
