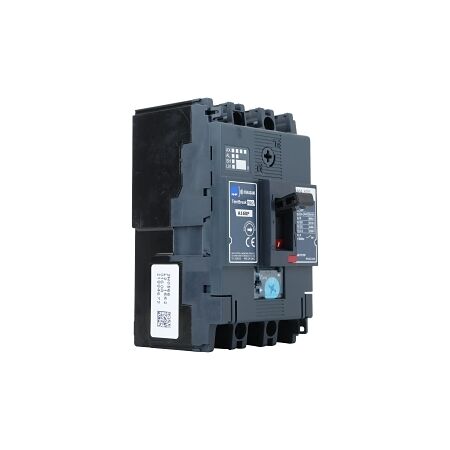

MCCB 160 Frame 36kA 3P 100A Adjustable Thermal Fixed Magnetic NHP
MCCB with 160 frame size, 36kA short circuit capacity, and adjustable thermal fixed magnetic trip unit—ideal for industrial and commercial power distribution.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Rated current: 100 A
- Number of poles: 3
- Max rated operation voltage: 690 V
- Rated ultimate short circuit breaking capacity: 36 kA
- Rated service short circuit breaking capacity: 20 kA
- Type of protection trip unit: Thermal/magnetic release
- Trip curve: Adjustable thermal, fixed magnetic
- Frame size rating: 160 A
- Long time overload protection adjustment range: 63-100 A
- Rated frequency: 50-60 Hz
- Rated insulation voltage: 690 V
- Rated short circuit breaking capacity: 6 kA at 690 V AC
- Rated impulse withstand voltage: 8 kV
- Power loss: 34.1 W
- Mechanical life: 20,000 cycles
- Electrical life: 10,000 cycles
- Dimensions (H x L x W): 130mm x 95mm x 75mm
- Weight: 0.8 kg
Key Features
- Rated current: 100 A
- 36 kA short circuit breaking capacity
- Adjustable thermal and fixed magnetic trip unit
- Suitable for isolation
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical systems in commercial buildings
- General: Protection of electrical circuits in various applications
Standards & Compliance
- Complies with AS/NZS IEC 60947.2 for safety and performance standards.
Environmental Benefits
- Designed for energy efficiency, reducing power loss and enhancing system reliability.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Terasaki TemBreak PRO MCCB 160 Frame 36kA 3P 100A is available now for immediate purchase. Ideal for industrial and commercial electrical systems.
