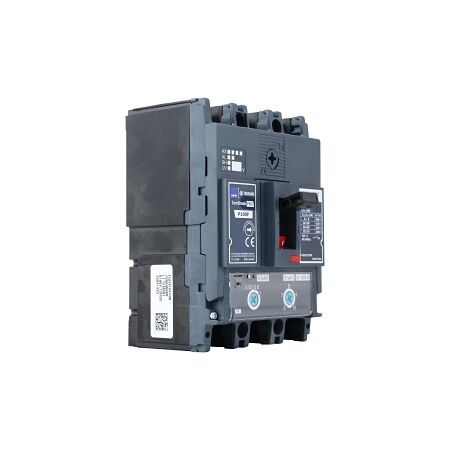

Terasaki TemBreak PRO MCCB 160 Frame 36kA 3P 20A Adj. Therm. Adj. Mag.

MCCB 160 Frame 36kA 3P 20A | Adjustable Therm/Mag | High Capacity by NHP

BRAND: NHP

SKU: P160F2320TM

$413.90 List price: $549.60

+ −

30 Days Return Delivery Options

MCCB with 160 frame and 36kA breaking capacity—ideal for industrial and commercial power distribution. Built for reliable protection, with adjustable thermal and magnetic trip settings.

Description
Attachments

Product Name/Title: Terasaki TemBreak PRO MCCB 160 Frame 36kA 3P 20A Adj. Therm. Adj. Mag.

Brand: NHP

SKU: P160F2320TM

Alternatively Known As: MCCB, Molded Case Circuit Breaker, Circuit Breaker 20A

Technical Specifications

Rated Current: 20 A
Number of Poles: 3
Max Rated Operation Voltage: 690 V
Rated Ultimate Short Circuit Breaking Capacity: 36 kA
Rated Service Short Circuit Breaking Capacity: 36 kA
Rated Insulation Voltage: 800 V
Rated Impulse Withstand Voltage: 8 kV
Rated Frequency: 50-60 Hz
Mechanical Life: 50,000 cycles
Electrical Life: 30,000 cycles
Cable Cross Section Range: 1.5-70 mm²
Dimensions (H x L x W): 130mm x 95.5mm x 90mm
Weight: 1 kg

Key Features

Thermal/magnetic release for reliable protection.
Adjustable thermal and magnetic trip settings.
High short-circuit breaking capacity of 36 kA.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Power distribution in manufacturing facilities
Commercial: Electrical installations in commercial buildings
General: Protection of electrical circuits in various applications

Standards & Compliance

Complies with AS/NZS IEC 60947.2 for safety and performance standards.

Environmental Benefits

Designed for energy efficiency, reducing overall power loss.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Terasaki TemBreak PRO MCCB 160 Frame 36kA 3P 20A is available now for immediate purchase, ideal for industrial and commercial electrical installations.

P160F2320TM-AU-TBP-MCCB-160AF-Datasheet.pdf (P160F2320TM-AU-TBP-MCCB-160AF-Datasheet.pdf, 894 Kb) [Download]
