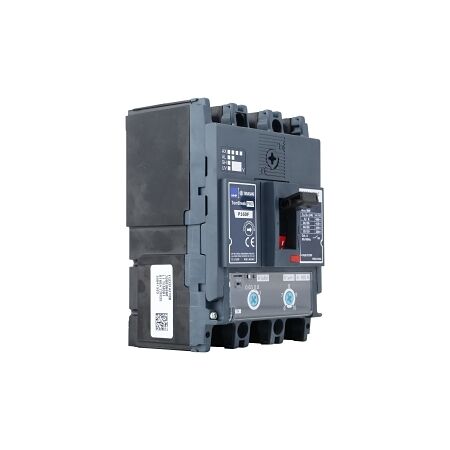

Terasaki TemBreak PRO MCCB 160 Frame 36kA 3P 160A Adj. Therm. Adj. Mag.

MCCB 160 Frame 36kA 3P | Adjustable Thermal & Magnetic | 160A by NHP

BRAND: NHP

SKU: P160F23160TM

$583.00 List price: $774.10

+ −

30 Days Return Delivery Options

MCCB with 160A current and adjustable thermal/magnetic trip—ideal for industrial and commercial electrical protection. Built for high breaking capacity of 36kA, ensuring reliable short circuit protection.

Description
Attachments

Product Name/Title: Terasaki TemBreak PRO MCCB 160 Frame 36kA 3P 160A Adj. Therm. Adj. Mag.

Brand: NHP

SKU: P160F23160TM

Alternatively Known As: MCCB, Circuit Breaker, Thermal Magnetic Circuit Breaker

Technical Specifications

Rated Current: 160 A
Number of Poles: 3
Max Rated Operation Voltage: 690 V
Rated Ultimate Short Circuit Breaking Capacity: 36 kA
Rated Service Short Circuit Breaking Capacity: 36 kA
Type of Protection: Thermal/magnetic release
Trip Curve: Adjustable thermal, adjustable magnetic
Rated Frequency: 50-60 Hz
Rated Insulation Voltage: 800 V
Rated Short Circuit Breaking Capacity (ICU): 6 kA
Rated Impulse Withstand Voltage: 8 kV
Power Loss: 42.3 W
Mechanical Life: 50,000 cycles
Electrical Life: 30,000 cycles
Cable Cross Section Range: 1.5-70 mm²
Dimensions (H x L x W): 130mm x 95.5mm x 90mm
Weight: 1 kg

Key Features

Adjustable thermal and magnetic trip settings for customized protection.
High breaking capacity of 36 kA for reliable short circuit protection.
Suitable for isolation and front-side connection.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Power distribution in manufacturing facilities
Commercial: Electrical protection in commercial buildings
General: Suitable for various electrical installations requiring circuit protection

Standards & Compliance

Complies with AS/NZS IEC 60947.2 for safety and performance standards.

Environmental Benefits

Designed for high efficiency, reducing energy loss and improving overall system performance.

Warranty Information

2 years warranty against manufacturing defects.

Available Now

The Terasaki TemBreak PRO MCCB 160 Frame 36kA 3P 160A is available now for immediate purchase, ideal for industrial and commercial electrical protection.

P160F23160TM-AU-TBP-MCCB-160AF-Datasheet.pdf (P160F23160TM-AU-TBP-MCCB-160AF-Datasheet.pdf, 894 Kb) [Download]
