MCCB 160 Frame 50kA 3P 100A | Adjustable Therm/Mag | NHP
MCCB with 160 frame size and 50kA breaking capacity—ideal for industrial and commercial power distribution. Built for customized protection, with adjustable thermal and magnetic trip settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

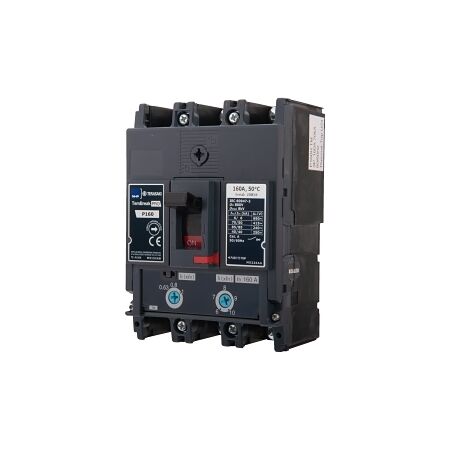

Product Name/Title: Terasaki TemBreak PRO MCCB 160 Frame 50kA 3P 100A Adj. Therm. Adj. Mag.
Brand: NHP
SKU: P160N23100TM
Alternatively Known As: MCCB, Molded Case Circuit Breaker, Circuit Breaker 100A
Technical Specifications
- Rated Current: 100 A
- Number of Poles: 3
- Max Rated Operation Voltage: 690 V
- Rated Ultimate Short Circuit Breaking Capacity: 50 kA
- Rated Service Short Circuit Breaking Capacity: 50 kA
- Type of Protection: Thermal/magnetic release
- Trip Curve: Adjustable thermal, adjustable magnetic
- Frame Size Rating: 160 A
- Long Time Overload Protection Adjustment Range: 63-100 A
- Instantaneous Protection Adjustment Range: 600-1200 A
- Rated Frequency: 50-60 Hz
- Rated Insulation Voltage: 800 V
- Rated Short Circuit Breaking Capacity (ICU): 6 kA
- Rated Impulse Withstand Voltage: 8 kV
- Power Loss: 20.1 W
- Mechanical Life: 50,000 cycles
- Electrical Life: 30,000 cycles
- Cable Cross Section Range: 1.5-70 mm²
- Dimensions (H x L x W): 130mm x 95.5mm x 90mm
- Weight: 1 kg
Key Features
- Adjustable thermal and magnetic trip settings for customized protection.
- High breaking capacity of 50 kA for reliable circuit protection.
- Suitable for isolation and front-side connection.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical systems in commercial buildings
- General: Protection of electrical circuits in various applications
Standards & Compliance
- Complies with AS/NZS IEC 60947.2 for safety and performance standards.
Environmental Benefits
- Designed for long electrical life, reducing waste and resource consumption.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Terasaki TemBreak PRO MCCB 160 Frame 50kA 3P 100A is available now for immediate purchase. Ideal for industrial and commercial electrical systems.
