MCCB 160 Frame 70kA 3P 20A | Adjustable Therm. & Mag. | Compact Design by NHP

BRAND: NHP
SKU: P160H2320TM
$696.20 List price: $924.50
+ −
30 Days Return Delivery Options
MCCB with 160 frame and 70kA breaking capacity—ideal for industrial and commercial power distribution. Built for customized protection, with adjustable thermal and magnetic trip settings.

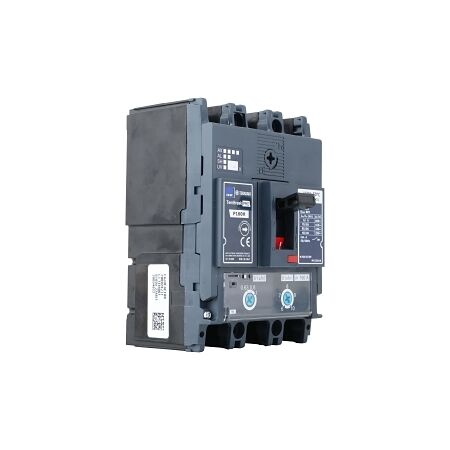

Product Name/Title: Terasaki TemBreak PRO MCCB 160 Frame 70kA 3P 20A Adj. Therm. Adj. Mag.

Brand: NHP

SKU: P160H2320TM

Alternatively Known As: MCCB, Molded Case Circuit Breaker, Circuit Breaker 20A, Terasaki Breaker

Technical Specifications
  • Rated Current: 20 A
  • Number of Poles: 3
  • Max Rated Operation Voltage: 690 V
  • Rated Ultimate Short Circuit Breaking Capacity: 70 kA
  • Rated Service Short Circuit Breaking Capacity: 50 kA
  • Type of Protection: Thermal/magnetic release
  • Trip Curve: Adjustable thermal, adjustable magnetic
  • Frame Size Rating: 160 A
  • Long Time Overload Protection Adjustment Range: 12.5-20 A
  • Instantaneous Protection Adjustment Range: 120-240 A
  • Rated Insulation Voltage: 800 V
  • Rated Short Circuit Breaking Capacity: 6 kA
  • Rated Impulse Withstand Voltage: 8 kV
  • Power Loss: 24.9 W
  • Mechanical Life: 50,000 cycles
  • Electrical Life: 30,000 cycles
  • Cable Cross Section Range: 1.5-70 mm²
  • Pollution Degree: 3
  • Rated Surrounding Temperature: 50 °C
  • Maximum Operating Temperature: 70 °C
  • Dimensions (H x L x W): 130mm x 95.5mm x 90mm
  • Weight: 1 kg
Key Features
  • Adjustable thermal and magnetic trip settings for customized protection.
  • High breaking capacity of 70 kA for reliable circuit protection.
  • Suitable for isolation and front-side connection.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Power distribution in manufacturing facilities
  • Commercial: Electrical systems in commercial buildings
  • General: Protection of electrical circuits in various applications
Standards & Compliance
  • Complies with AS/NZS IEC 60947.2 for safety and performance standards.
Environmental Benefits
  • Designed for long electrical life, reducing waste and resource consumption.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Terasaki TemBreak PRO MCCB 160 Frame 70kA 3P 20A is available now for immediate purchase. Ideal for industrial and commercial electrical systems.
