MCCB 1600A 3-Pole | 50kA Breaking Capacity | Electronic Trip | NHP
MCCB with 1600A rated current and 3-pole configuration—ideal for industrial and commercial power distribution. Built for precise protection with electronic trip unit and high 50kA breaking capacity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

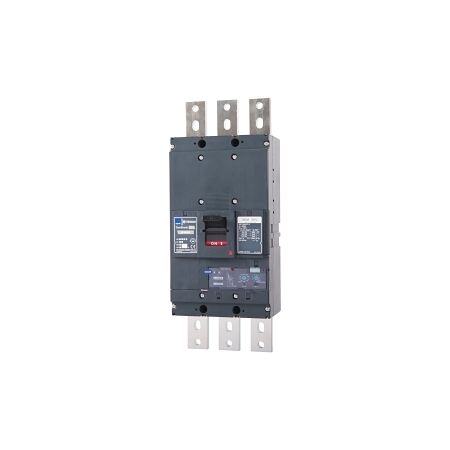

Product Name/Title: Terasaki TemBreak PRO MCCB 1600 Frame 50kA 3Pole 1600A Basic Electronic w Cbl Intlk
Brand: NHP
SKU: B1600N31600BECI
Alternatively Known As: MCCB, Molded Case Circuit Breaker, Circuit Breaker 1600A
Technical Specifications
- Rated Current: 1600 A
- Number of Poles: 3
- Max Rated Operation Voltage: 690 V
- Rated Ultimate Short Circuit Breaking Capacity: 50 kA
- Rated Service Short Circuit Breaking Capacity: 38 kA
- Trip Curve: LSI
- Long Time Overload Protection Adjustment Range: 640-1600 A
- Instantaneous Protection Adjustment Range: 4000-19200 A
- Rated Insulation Voltage: 800 V
- Rated Impulse Withstand Voltage: 8 kV
- Power Loss: 400 W
- Mechanical Life: 5000 cycles
- Dimensions (H x L x W): 570mm x 140mm x 210mm
- Weight: 27 kg
Key Features
- Electronic release trip unit for precise protection.
- High breaking capacity of 50 kA at 415 V.
- Suitable for isolation and reverse connection of supply.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical systems in large buildings
- General: Protection of electrical circuits from overloads and short circuits
Standards & Compliance
- Complies with AS/NZS IEC 60947.2 for safety and performance standards.
Environmental Benefits
- Designed for high efficiency, reducing energy loss and operational costs.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Terasaki TemBreak PRO MCCB 1600 Frame 50kA 3Pole 1600A is available now for immediate purchase. Ideal for industrial and commercial electrical systems.
