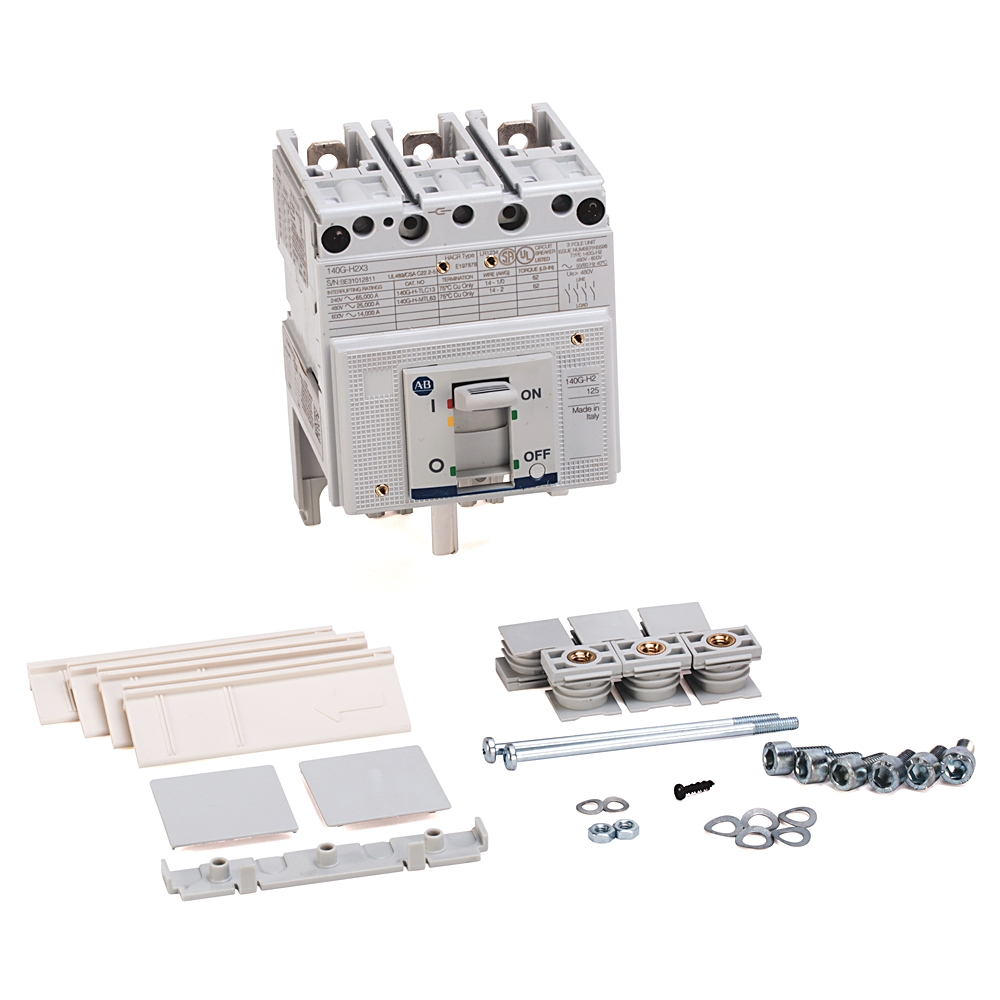

MCCB 160A 3P 36kA Electronic H Frame Grey Allen-Bradley
Allen-Bradley H Frame MCCB features 160A, 3-pole and 36kA breaking capacity. Electronic trip protection for commercial and industrial switchboards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Molded Case Circuit Breaker 140G, MCCB 160A Electronic LSIG, Allen-Bradley Circuit Breaker H Frame
Technical Specifications
- Rated Current: 160A
- Poles: 3
- Interrupting Capacity: 36kA
- Trip Unit Type: Electronic LSIG
- Frame Size: H
- Voltage Rating: Up to 600V AC
- Dimensions (H x L x W): 150mm x 120mm x 100mm
- Weight: 5 kg
Key Features
- High interrupting capacity of 36kA for enhanced safety
- 3-pole design suitable for three-phase systems
- Electronic LSIG (Long-time, Short-time, Instantaneous, Ground fault) trip unit for precise protection
- H frame size for compatibility with existing switchgear
Professional Installation Requirements
- Installation must be performed by a licensed electrician to ensure compliance with electrical safety standards.
Applications
- Industrial electrical distribution panels
- Commercial building electrical protection
- Motor control centers
- Power distribution systems requiring circuit protection
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Electronic trip unit improves energy efficiency by reducing nuisance trips
- Durable design reduces waste and replacement frequency
Warranty Information
1 year limited warranty covering manufacturing defects.
Available Now
The Allen-Bradley MCCB 140G H Frame 36kA 3P 160A Electronic LSIG is available for immediate purchase, ideal for industrial and commercial electrical protection applications.
