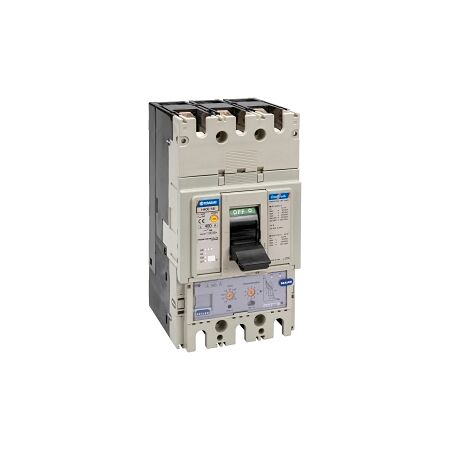

MCCB 250 Frame 125kA 3P 250A Electronic Trip High Capacity NHP

BRAND: Terasaki
SKU: H400NE3250
$7,835.40 List price: $9,764.20
+ −
30 Days Return Electricians Unlock Trade Access
MCCB with 250A rated current and 125kA breaking capacity—ideal for industrial and commercial power distribution.
Technical Specifications
  • Rated Current: 250 A
  • Number of Poles: 3
  • Max Rated Operation Voltage: 690 V
  • Rated Ultimate Short Circuit Breaking Capacity: 125 kA
  • Rated Service Short Circuit Breaking Capacity: 85 kA
  • Trip Curve: LSI
  • Frame Size Rating: 400 A
  • Rated Insulation Voltage: 800 V
  • Rated Impulse Withstand Voltage: 8 kV
  • Cable Cross Section Range: 35-400 mm²
  • Max Vibration Acceleration: 19 m/s²
  • Max Operating Temperature: 70 °C
  • Dimensions (H x L x W): 260mm x 182mm x 140mm
  • Weight: 7.1 kg
Key Features
  • Electronic release trip unit for precise protection.
  • High short-circuit breaking capacity of 125 kA.
  • Suitable for isolation and reverse connection of supply.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Power distribution in manufacturing facilities
  • Commercial: Electrical systems in large buildings
  • General: Protection of electrical circuits from overloads and short circuits
Standards & Compliance
  • Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
  • Efficient design reduces energy loss and enhances system reliability.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Terasaki TemBreak 2 MCCB 250 Frame 125kA 3P 250A Electronic is available now for immediate purchase. Ideal for industrial and commercial applications.

Non-Returnable & Non-Cancellable

H400NE3250-AU-TB2-MCCB-Datasheet.pdf (H400NE3250-AU-TB2-MCCB-Datasheet.pdf, 2,033 Kb) [Download]
