MCCB 250 Frame 50kA 3P 100A | Adjustable Thermal & Magnetic | NHP

BRAND: NHP
SKU: P250N3100TM
$735.40 List price: $976.50
+ −
30 Days Return Delivery Options
MCCB with 250 frame size and 50kA breaking capacity—ideal for industrial power distribution. Built for safety with adjustable thermal and magnetic trip settings, ensuring reliable circuit protection.

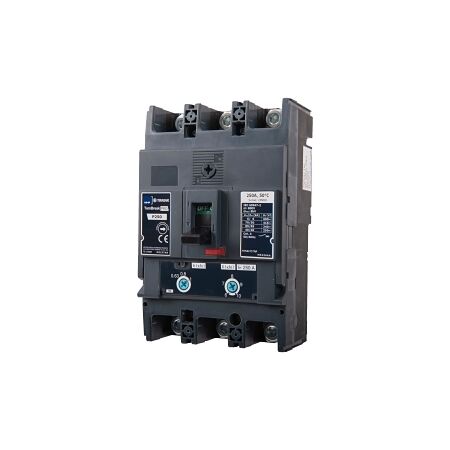

Product Name/Title: Terasaki TemBreak PRO MCCB 250 Frame 50kA 3P 100A Adj. Thermal Adj. Magnetic

Brand: NHP

SKU: P250N3100TM

Alternatively Known As: MCCB, Circuit Breaker, Thermal Magnetic Circuit Breaker

Technical Specifications
  • Rated Current: 100 A
  • Number of Poles: 3
  • Max Rated Operation Voltage: 690 V
  • Rated Ultimate Short Circuit Breaking Capacity: 50 kA
  • Rated Service Short Circuit Breaking Capacity: 50 kA
  • Type of Protection: Thermal/magnetic release
  • Trip Curve: Adjustable thermal, adjustable magnetic
  • Frame Size Rating: 250 A
  • Long Time Overload Protection Adjustment Range: 63-100 A
  • Instantaneous Protection Adjustment Range: 600-1300 A
  • Rated Frequency: 50-60 Hz
  • Rated Insulation Voltage: 800 V
  • Rated Short Circuit Breaking Capacity (ICU): 6 kA
  • Rated Impulse Withstand Voltage: 8 kV
  • Mechanical Life: 30,000 cycles
  • Electrical Life: 10,000 cycles
  • Cable Cross Section Range: 35-185 mm²
  • Pollution Degree: 3
  • Max Operating Temperature: 70 °C
  • Storage Temperature: -10-70 °C
  • Dimensions (H x L x W): 165mm x 95.5mm x 105mm
  • Weight: 1.5 kg
Key Features
  • Adjustable thermal and magnetic trip settings for customized protection.
  • High breaking capacity of 50 kA for reliable short circuit protection.
  • Suitable for isolation and front-side connection.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Power distribution and protection in commercial and industrial settings
  • General: Suitable for various electrical installations requiring circuit protection
Standards & Compliance
  • Complies with AS/NZS IEC 60947.2 for safety and performance standards.
Environmental Benefits
  • Designed for high efficiency, reducing energy loss and improving system reliability.
Warranty Information

2 years warranty against manufacturing defects.

Available Now

The Terasaki TemBreak PRO MCCB 250 Frame 50kA 3P 100A is available now for immediate purchase, ideal for industrial and commercial applications.

P250N3100TM-AU-TBP-MCCB-250AF-Datasheet.pdf (P250N3100TM-AU-TBP-MCCB-250AF-Datasheet.pdf, 1,027 Kb) [Download]
