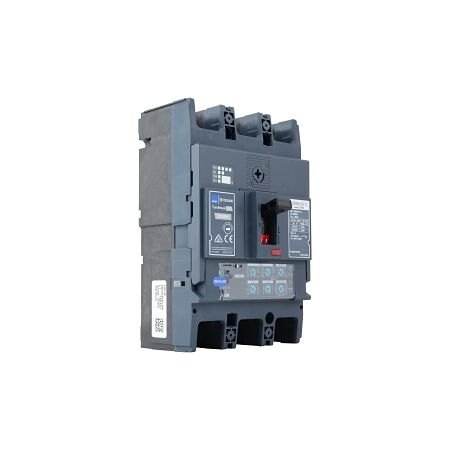

Terasaki TemBreak PRO MCCB 250 Frame 70kA 3P 250A Basic Electronic

MCCB 250 Frame 70kA 3P 250A | Basic Electronic | High Breaking Capacity by NHP

BRAND: NHP

SKU: P250H3250BE

$2,601.90 List price: $3,454.90

+ −

30 Days Return Delivery Options

MCCB with 250A rated current and 70kA breaking capacity—ideal for industrial and commercial power distribution. Built for precise protection with electronic release, ensuring safety and reliability.

Description
Attachments

Product Name/Title: Terasaki TemBreak PRO MCCB 250 Frame 70kA 3P 250A Basic Electronic

Brand: NHP

SKU: P250H3250BE

Alternatively Known As: MCCB, Circuit Breaker, Electronic Circuit Breaker

Technical Specifications

Rated Current: 250 A
Number of Poles: 3
Max Rated Operation Voltage: 690 V
Rated Ultimate Short Circuit Breaking Capacity: 70 kA
Rated Service Short Circuit Breaking Capacity: 50 kA
Trip Curve: LSI
Rated Insulation Voltage: 800 V
Rated Frequency: 50-60 Hz
Power Loss: 45 W
Mechanical Life: 20000 cycles
Electrical Life: 10000 cycles
Cable Cross Section Range: 35-185 mm²
Pollution Degree: 3
Max Operating Temperature: 70 °C
Dimensions (H x L x W): 165mm x 95.5mm x 105mm
Weight: 1.5 kg

Key Features

Electronic release for precise protection.
High breaking capacity of 70 kA.
Suitable for isolation and front-side connection.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Power distribution in manufacturing facilities
Commercial: Electrical installations in commercial buildings
General: Protection of electrical circuits from overloads and short circuits

Standards & Compliance

Complies with AS/NZS IEC 60947.2 for safety and performance standards.

Environmental Benefits

Designed for high efficiency, reducing energy loss and improving system reliability.

Warranty Information

2 years warranty against manufacturing defects.

Available Now

The Terasaki TemBreak PRO MCCB 250 Frame 70kA 3P 250A Basic Electronic is available now for immediate purchase. Ideal for industrial and commercial electrical installations.

P250H3250BE-AU-TBP-MCCB-250AF-Datasheet.pdf (P250H3250BE-AU-TBP-MCCB-250AF-Datasheet.pdf, 946 Kb) [Download]
