MCCB 400 Frame 690V AC | 70kA 3P 400A | Rear Connect Electronic by NHP
MCCB with 400A rated current and 70kA short-circuit capacity—ideal for industrial power distribution. Built for precise trip settings, with electronic release and rear connection for efficient installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

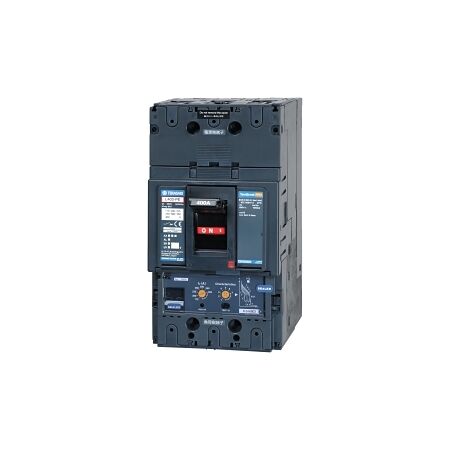

Product Name/Title: Terasaki TemBreak 2 MCCB 400 Frame 690V AC 70kA 3P 400A Rear Connect Electronic
Brand: NHP
SKU: L400PE3400RC
Alternatively Known As: MCCB, Circuit Breaker, Power Switching Circuit Breaker
Technical Specifications
- Rated Current: 400 A
- Number of Poles: 3
- Max Rated Operation Voltage: 690 V AC
- Trip Curve: LSI
- Rated Short Circuit Breaking Capacity: 70 kA
- Rated Insulation Voltage: 800 V
- Rated Frequency: 50-60 Hz
- Mechanical Life: 15,000 cycles
- Electrical Life: 1,000 cycles
- Cable Cross Section Range: 35-185 mm²
- Pollution Degree: 3
- Rated Surrounding Temperature: -5 to 70 °C
- Dimensions (H x L x W): 260mm x 294mm x 140mm
- Weight: 7.1 kg
Key Features
- Electronic release for precise trip settings.
- High short-circuit breaking capacity of 70 kA.
- Suitable for isolation and reverse connection of supply.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution and protection in commercial and industrial settings
- Electrical: Suitable for use in electrical panels and switchboards
Standards & Compliance
- Complies with AS/NZS 60950 for safety of electrical equipment.
Environmental Benefits
- Designed for high efficiency, reducing energy loss and improving system reliability.
Warranty Information
Standard warranty as per manufacturer’s policy.
Available Now
The Terasaki TemBreak 2 MCCB 400 Frame is available now for immediate purchase. Ideal for industrial and electrical applications.
Non-Returnable & Non-Cancellable
