MCCB 4P 800A Electronic LSI | Adjustable Protection | 140GMTH4D80 by NHP
MCCB with 800A rated current and electronic LSI trip unit—ideal for industrial and commercial power distribution. Built for precise circuit protection, with adjustable overload and instantaneous settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

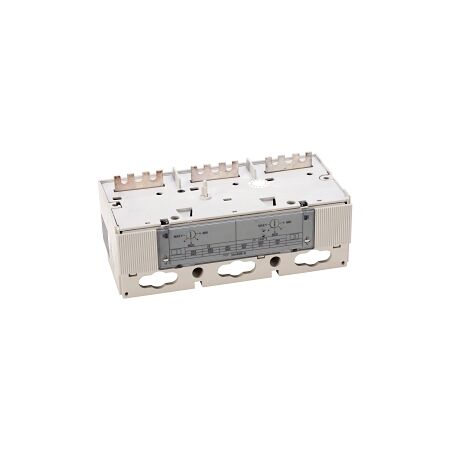

Product Name/Title: Allen-Bradley 140G MCCB M Frame Trip Unit 4P 800A Electronic LSI
Brand: NHP
SKU: 140GMTH4D80
Alternatively Known As: Moulded Case Circuit Breaker, MCCB, Electronic Trip Unit
Technical Specifications
- Rated Current: 800 A
- Number of Poles: 4
- Type of Protection Trip Unit: Electronic release
- Trip Curve: LSI
- Long Time Overload Protection Adjustment Range: 320-800 A
- Instantaneous Protection Adjustment Range: 1200-8400 A
- Rated Frequency: 50-60 Hz
- Rated Insulation Voltage: 1000 V
- Short Time Protection Adjustment Range: 480-8000 A
- Rated Impulse Withstand Voltage: 8 kV
- Maximum Operating Temperature: 75 °C
- Storage Temperature: -40-80 °C
- Max Altitude Before Derating: 2000 m
- Dimensions (H x L x W): 200mm x 400mm x 280mm
- Weight: 10 kg
Key Features
- Electronic release for precise trip settings.
- Adjustable long time overload and instantaneous protection.
Professional Installation Requirements
- Professional installation by a qualified electrician is required for optimal safety and compliance.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical systems in large buildings
- General: Protection of electrical circuits in various applications
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation safety.
Environmental Benefits
- Designed to operate efficiently, reducing energy waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Allen-Bradley 140G MCCB M Frame Trip Unit 4P 800A Electronic LSI is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable circuit protection.
