MCCB 630 Frame 36kA 3P 630A | Electronic Release | High Efficiency by NHP
MCCB with 630A frame and 36kA short circuit capacity—ideal for industrial and commercial power distribution. Built for precise protection with electronic release, ensuring high efficiency and system reliability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

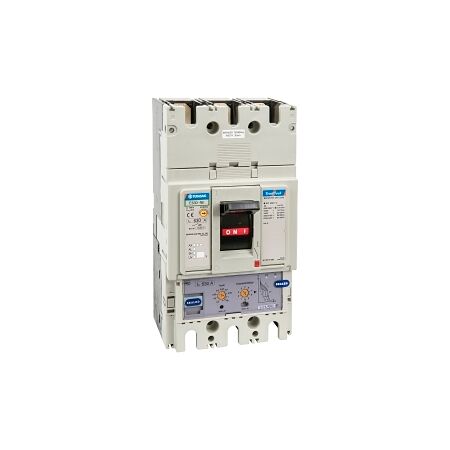

Product Name/Title: Terasaki TemBreak 2 MCCB 630 Frame 36kA 3P 630A Electronic
Brand: NHP
SKU: E630NE3630
Alternatively Known As: MCCB, Circuit Breaker, Electronic Circuit Breaker
Technical Specifications
- Rated Current: 630 A
- Number of Poles: 3
- Max Rated Operation Voltage: 690 V
- Rated Ultimate Short Circuit Breaking Capacity: 36 kA
- Rated Service Short Circuit Breaking Capacity: 36 kA
- Type of Protection Trip Unit: Electronic release
- Trip Curve: LSI
- Frame Size Rating: 630 A
- Long Time Overload Protection Adjustment Range: 252-630 A
- Rated Frequency: 50-60 Hz
- Rated Insulation Voltage: 800 V
- Short Time Protection Adjustment Range: 630-6300 A
- Rated Impulse Withstand Voltage: 8 kV
- Electrical Life: 4500 cycles
- Mechanical Life: 15000 cycles
- Max Vibration Acceleration: 19 m/s²
- Max Vibration Frequency Operational: 16.7 Hz
- Max Vibration Duration: 12 min
- Cable Cross Section Range: 35-400 mm²
- Pollution Degree: 3
- Rated Surrounding Temperature Without Derating: 45 °C
- Maximum Operating Temperature: 70 °C
- Storage Temperature: -10-70 °C
- Allowable Relative Humidity: 0-85 %
- Max Altitude Before Derating: 2000 m
- Dimensions (H x L x W): 260mm x 182mm x 140mm
- Weight: 5 kg
Key Features
- Electronic release for precise protection.
- 36 kA short circuit breaking capacity.
- Suitable for isolation.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical protection in commercial buildings
- General: Suitable for various electrical installations requiring circuit protection
Standards & Compliance
- Complies with AS/NZS 60950 for safety and performance standards.
Environmental Benefits
- Designed for high efficiency, reducing energy loss and improving system reliability.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Terasaki TemBreak 2 MCCB 630 Frame 36kA 3P 630A Electronic is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable circuit protection.
Non-Returnable & Non-Cancellable
