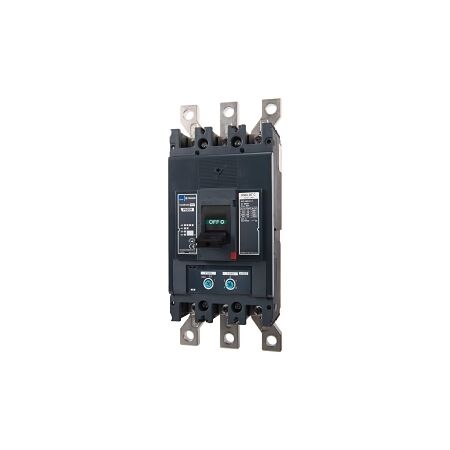

Terasaki TemBreak PRO MCCB 630 Frame 70kA 3P 630A Adj. Thermal Adj. Magnetic

MCCB 630 Frame 70kA 3P | Adjustable Thermal & Magnetic | 630A by NHP

BRAND: NHP

SKU: P630H3630TM

$2,453.20 List price: $3,257.50

+ −

30 Days Return Delivery Options

MCCB with 630A rated current and adjustable thermal and magnetic trip settings—ideal for industrial and commercial power distribution. Built for high breaking capacity of 70kA, ensuring reliable short circuit protection.

Description
Attachments

Product Name/Title: Terasaki TemBreak PRO MCCB 630 Frame 70kA 3P 630A Adj. Thermal Adj. Magnetic

Brand: NHP

SKU: P630H3630TM

Alternatively Known As: MCCB, Circuit Breaker, Thermal Magnetic Circuit Breaker

Technical Specifications

Rated Current: 630 A
Number of Poles: 3
Max Rated Operation Voltage: 690 V
Rated Ultimate Short Circuit Breaking Capacity: 70 kA
Rated Service Short Circuit Breaking Capacity: 70 kA
Type of Protection: Thermal/magnetic release
Trip Curve: Adjustable thermal, adjustable magnetic
Rated Insulation Voltage: 800 V
Rated Impulse Withstand Voltage: 8 kV
Power Loss: 186.9 W
Mechanical Life: 15000 cycles
Electrical Life: 4000 cycles
Cable Cross Section Range: 35-400 mm²
Pollution Degree: 3
Rated Surrounding Temperature: 30 °C
Maximum Operating Temperature: 70 °C
Dimensions (H x L x W): 260mm x 151mm x 140mm
Weight: 5 kg

Key Features

Adjustable thermal and magnetic trip settings for customized protection.
High breaking capacity of 70 kA for reliable short circuit protection.
Suitable for isolation and front-side connection.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Power distribution in manufacturing facilities
Commercial: Electrical protection in commercial buildings
General: Suitable for various electrical installations requiring circuit protection

Standards & Compliance

Complies with AS/NZS IEC 60947.2 for electrical equipment.

Environmental Benefits

Designed for energy efficiency, reducing power loss during operation.

Warranty Information

2 years warranty against manufacturing defects.

Available Now

The Terasaki TemBreak PRO MCCB 630 Frame 70kA 3P 630A is available now for immediate purchase. Ideal for industrial and commercial electrical protection.

P630H3630TM-AU-TBP-MCCB-630AF-Datasheet.pdf (P630H3630TM-AU-TBP-MCCB-630AF-Datasheet.pdf, 872 Kb) [Download]
