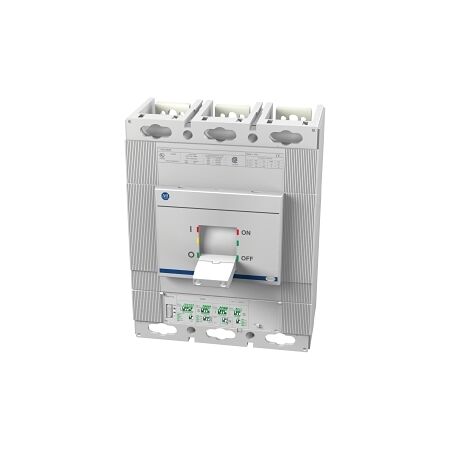

Allen-Bradley 140G MCCB M Frame 50kA 3P 630A Electronic LSIG Maintenance Instantaneous

MCCB 630A 3P 50kA | Electronic LSIG | M Frame by NHP

BRAND: NHP

SKU: 140GM5K3D63

$11,652.30 List price: $15,472.70

+ −

30 Days Return Delivery Options

MCCB with 630A rated current and 3 poles—ideal for industrial and commercial power distribution. Built for precise protection, with electronic LSIG trip unit and integrated earth fault protection.

Description
Attachments

Product Name/Title: Allen-Bradley 140G MCCB M Frame 50kA 3P 630A Electronic LSIG Maintenance Instantaneous

Brand: NHP

SKU: 140GM5K3D63

Alternatively Known As: Moulded Case Circuit Breaker, MCCB, Circuit Breaker 630A

Technical Specifications

Rated Current: 630 A
Number of Poles: 3
Max Rated Operation Voltage: 690 V
Rated Ultimate Short Circuit Breaking Capacity: 50 kA
Rated Service Short Circuit Breaking Capacity: 50 kA
Trip Curve: LSIG
Frame Size Rating: 800 A
Rated Insulation Voltage: 1000 V
Rated Frequency: 50-60 Hz
Electrical Life: 7000 cycles
Mechanical Life: 20000 cycles
Power Loss: 90 W
Rated Impulse Withstand Voltage: 8 kV
Dimensions (H x L x W): 268mm x 159mm x 210mm
Weight: 12.1 kg

Key Features

Electronic release trip unit for precise protection.
Integrated earth fault protection.
Long time overload protection adjustment range of 252-630 A.
Instantaneous protection adjustment range of 945-7560 A.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Power distribution and protection in manufacturing facilities
Commercial: Electrical systems in commercial buildings
General: Any application requiring reliable circuit protection

Standards & Compliance

Complies with relevant Australian standards for electrical safety.

Environmental Benefits

Designed for high efficiency and reliability in electrical systems.

Warranty Information

Standard warranty applies.

Available Now

The Allen-Bradley 140G MCCB M Frame 50kA 3P 630A is available now for immediate purchase. Ideal for industrial and commercial electrical systems.

Non-Returnable & Non-Cancellable

140GM5K3D63-AU-140G-MCCB-M-Frame-Datasheet.pdf (140GM5K3D63-AU-140G-MCCB-M-Frame-Datasheet.pdf, 254 Kb) [Download]
