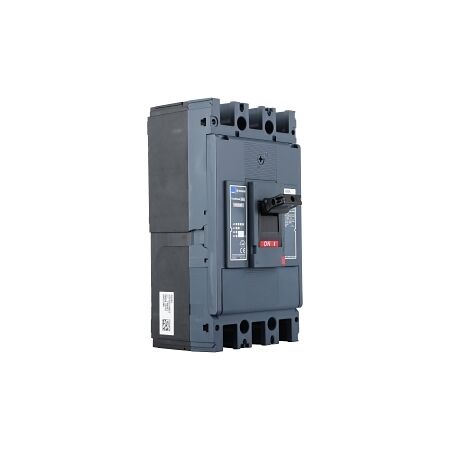

MCCB 630A Non Auto Switch | 3P 630 Frame | Bolt Connection by NHP
MCCB with 630A rated current and non-auto switch—ideal for industrial and commercial power distribution. Built for isolation with bolt connection, ensuring reliable protection of electrical circuits.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Rated Current: 630 A
- Number of Poles: 3
- Max Rated Operation Voltage: 690 V
- Rated Frequency: 50-60 Hz
- Rated Insulation Voltage: 800 V
- Short Time Withstand Current: 7.6 kA
- Electrical Life: 4000 cycles
- Mechanical Life: 20000 cycles
- Cable Cross Section Range: 35-400 mm²
- Pollution Degree: 3
- Rated Surrounding Temperature: 50 °C
- Maximum Operating Temperature: 70 °C
- Dimensions (H x L x W): 260mm x 145mm x 140mm
- Weight: 5 kg
Key Features
- Rated current of 630 A with a non-auto switch mechanism.
- Suitable for isolation and features a bolt connection for main circuit.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical systems in large buildings
- General: Protection of electrical circuits in various applications
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation safety.
Environmental Benefits
- Designed for high efficiency, reducing energy loss and operational costs.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Terasaki TemBreak PRO MCCB 630 Frame 3P 630A Non Auto Switch is available now for immediate purchase, ideal for industrial and commercial electrical systems.
