MCCB 70kA 3P 70A | Fixed Thermal Magnetic | G Frame by NHP
MCCB with 70kA short circuit capacity and 3-pole 70A configuration—ideal for industrial and commercial power distribution. Built for enhanced protection with fixed thermal and magnetic trip curves.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

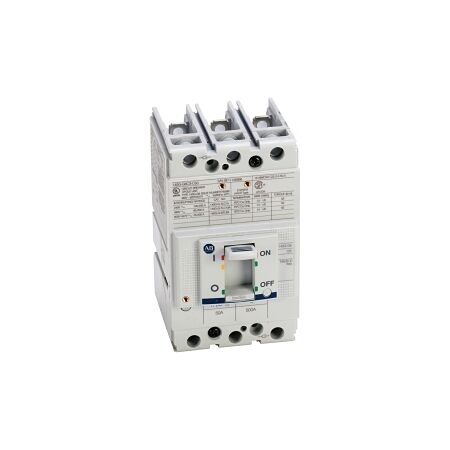

Product Name/Title: Allen-Bradley 140G MCCB G Frame 70kA 3P 70A Fixed Thermal Magnetic
Brand: NHP
SKU: 140GG6C3C70
Alternatively Known As: Moulded Case Circuit Breaker, MCCB, Circuit Breaker 70A
Technical Specifications
- Rated current: 70 A
- Number of poles: 3
- Max rated operation voltage: 690 V
- Rated ultimate short circuit breaking capacity: 70 kA
- Rated service short circuit breaking capacity: 35 kA
- Type of protection: Thermal/magnetic release
- Trip curve: Fixed thermal, fixed magnetic
- Rated frequency: 50-60 Hz
- Rated insulation voltage: 800 V
- Suitable for isolation: Yes
- Rated short circuit breaking capacity at 690 V: 10 kA
- Rated impulse withstand voltage: 8 kV
- Electrical life: 8000 cycles
- Power loss: 11 W
- Mechanical life: 25000 cycles
- Rated surrounding temperature: 40 °C
- Maximum operating temperature: 75 °C
- Storage temperature: -40-80 °C
- Max altitude before derating: 2000 m
- Dimensions (H x L x W): 130mm x 101mm x 76.2mm
- Weight: 1.1 kg
Key Features
- Rated current of 70 A with a 3-pole configuration.
- 70 kA short circuit breaking capacity at 415 V.
- Thermal/magnetic release for enhanced protection.
- Fixed thermal and magnetic trip curve.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution and protection in manufacturing facilities
- Commercial: Electrical systems in commercial buildings
- General: Any application requiring reliable circuit protection
Standards & Compliance
- Complies with relevant Australian standards for electrical safety.
Environmental Benefits
- Designed for high performance and reliability in various environmental conditions.
Warranty Information
Standard warranty as per manufacturer guidelines.
Available Now
The Allen-Bradley 140G MCCB G Frame 70kA 3P 70A Fixed Thermal Magnetic is available now for immediate purchase. Ideal for industrial and commercial electrical systems.
Non-Returnable & Non-Cancellable
