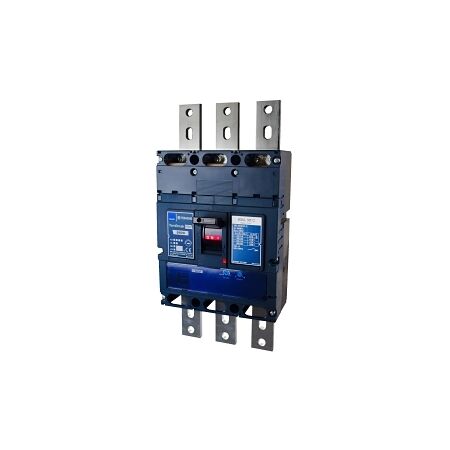

Terasaki TemBreak PRO MCCB 800 Frame 100kA 3P 630A Adjustable Thermal Adjustable Magnetic

MCCB 800 Frame 100kA 3P 630A | Adjustable Thermal & Magnetic | NHP

BRAND: NHP

SKU: B800G3630TM

$4,912.80 List price: $6,523.50

+ −

30 Days Return Delivery Options

MCCB with 800 frame size and 100kA breaking capacity—ideal for industrial and commercial electrical protection. Built for customizable safety, with adjustable thermal and magnetic trip settings.

Description
Attachments

Product Name/Title: Terasaki TemBreak PRO MCCB 800 Frame 100kA 3P 630A Adjustable Thermal Adjustable Magnetic

Brand: NHP

SKU: B800G3630TM

Alternatively Known As: Terasaki Circuit Breaker, MCCB 800A, Adjustable MCCB

Technical Specifications

Rated Current: 630 A
Number of Poles: 3
Max Rated Operation Voltage: 690 V
Rated Ultimate Short Circuit Breaking Capacity: 100 kA
Rated Service Short Circuit Breaking Capacity: 50 kA
Type of Protection: Thermal/magnetic release
Trip Curve: Adjustable thermal, adjustable magnetic
Frame Size Rating: 800 A
Long Time Overload Protection Adjustment Range: 252-630 A
Instantaneous Protection Adjustment Range: 2520-5040 A
Rated Frequency: 50-60 Hz
Rated Insulation Voltage: 800 V
Rated Short Circuit Breaking Capacity: 25 kA at 690 V AC
Rated Impulse Withstand Voltage: 8 kV
Mechanical Life: 10,000 cycles
Electrical Life: 4,000 cycles
Dimensions (H x L x W): 433mm x 145mm x 210mm
Weight: 8.5 kg

Key Features

Adjustable thermal and magnetic trip settings for customized protection.
High short-circuit breaking capacity of 100 kA at 415 V.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Power distribution in manufacturing facilities
Commercial: Electrical protection in commercial buildings
General: Suitable for various electrical installations requiring circuit protection

Standards & Compliance

Complies with AS/NZS IEC 60947.2 for electrical safety and performance.

Environmental Benefits

Designed for high efficiency, reducing energy loss and improving overall system performance.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Terasaki TemBreak PRO MCCB 800 Frame 100kA 3P 630A is available now for immediate purchase. Ideal for industrial and commercial electrical protection.

Non-Returnable & Non-Cancellable

B800G3630TM-AU-TBP-MCCB-800AF-Datasheet.pdf (B800G3630TM-AU-TBP-MCCB-800AF-Datasheet.pdf, 277 Kb) [Download]
