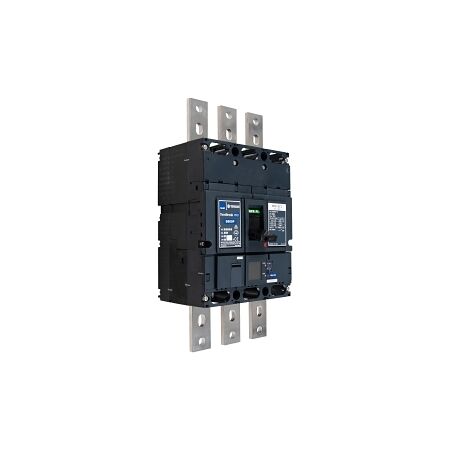

MCCB 800 Frame 125kA 3P 630A | Electronic Meter | High Capacity by NHP
MCCB with 800 frame size and 125kA breaking capacity—ideal for industrial and commercial power distribution. Built for precise protection with electronic trip unit and integrated energy metering.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Rated Current: 630 A
- Number of Poles: 3
- Max Rated Operation Voltage: 690 V
- Rated Ultimate Short Circuit Breaking Capacity: 125 kA
- Rated Service Short Circuit Breaking Capacity: 94 kA
- Trip Curve: LSI
- Frame Size Rating: 800 A
- Long Time Overload Protection Adjustment Range: 252-630 A
- Instantaneous Protection Adjustment Range: 1260-7560 A
- Rated Insulation Voltage: 800 V
- Rated Short Circuit Breaking Capacity: 25 kA at 690 V AC
- Rated Impulse Withstand Voltage: 8 kV
- Power Loss: 193 W
- Dimensions (H x L x W): 433mm x 140mm x 210mm
- Weight: 14.8 kg
Key Features
- Electronic release trip unit for precise protection.
- Integrated energy metering function for monitoring power usage.
- High short-circuit breaking capacity of 125 kA.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical systems in large buildings
- General: Protection of electrical circuits from overloads and short circuits
Standards & Compliance
- Complies with AS/NZS IEC 60947.2 for safety and performance standards.
Environmental Benefits
- Efficient energy management reduces overall power consumption.
Warranty Information
Standard warranty of 12 months against manufacturing defects.
Available Now
The Terasaki TemBreak PRO MCCB 800 Frame 125kA 3P 630A Amp Meter Electronic is available now for immediate purchase. Ideal for industrial and commercial electrical systems.
