MCCB 800 Frame 200kA 3P 630A | Electronic Release | High Capacity by NHP
MCCB with 800 frame size and 200kA breaking capacity—ideal for industrial and commercial power distribution. Built for precise protection with electronic release and high short circuit capacity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

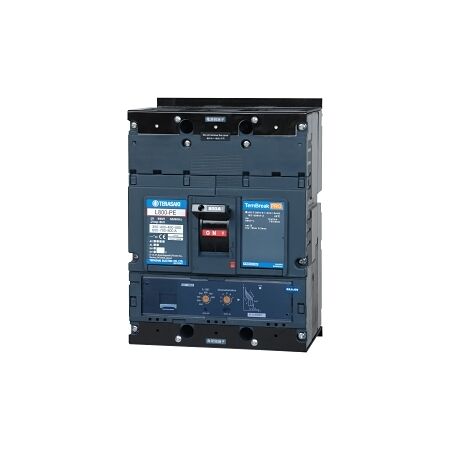

Product Name/Title: Terasaki TemBreak 2 MCCB 800 Frame 200kA 3P 630A Electronic
Brand: NHP
SKU: L800NE3630
Alternatively Known As: MCCB, Molded Case Circuit Breaker, Electronic Circuit Breaker
Technical Specifications
- Rated Current: 630 A
- Number of Poles: 3
- Max Rated Operation Voltage: 690 V
- Rated Ultimate Short Circuit Breaking Capacity: 200 kA
- Rated Service Short Circuit Breaking Capacity: 150 kA
- Type of Protection Trip Unit: Electronic release
- Trip Curve: LSI
- Frame Size Rating: 800 A
- Long Time Overload Protection Adjustment Range: 252-630 A
- Rated Frequency: 50-60 Hz
- Rated Insulation Voltage: 800 V
- Rated Short Circuit Breaking Capacity at 690 V AC: 25 kA
- Rated Short Circuit Breaking Capacity at 690 V AC: 20 kA
- Short Time Withstand Current: 10 kA
- Short Time Protection Adjustment Range: 630-6300 A
- Rated Impulse Withstand Voltage: 8 kV
- AC Power Loss per Pole: 63.33 W
- Electrical Life: 4000 cycles
- Mechanical Life: 10000 cycles
- Pollution Degree: 3
- Rated Surrounding Temperature: 50 °C
- Maximum Operating Temperature: 70 °C
- Storage Temperature: -10-70 °C
- Allowable Relative Humidity: 0-85 %
- Max Altitude Before Derating: 2000 m
- Dimensions (H x L x W): 273mm x 140mm x 210mm
- Weight: 13.3 kg
Key Features
- Electronic release trip unit for precise protection.
- High short circuit breaking capacity of 200 kA.
- Suitable for isolation and reverse connection of supply.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical systems in large buildings
- General: Protection of electrical circuits in various applications
Standards & Compliance
- Complies with relevant Australian standards for electrical safety.
Environmental Benefits
- Designed for high efficiency and reliability in electrical systems.
Warranty Information
Standard warranty applies, please check with the manufacturer for details.
Available Now
The Terasaki TemBreak 2 MCCB 800 Frame 200kA 3P 630A Electronic is available now for immediate purchase. Ideal for industrial and commercial electrical systems.
Non-Returnable & Non-Cancellable
