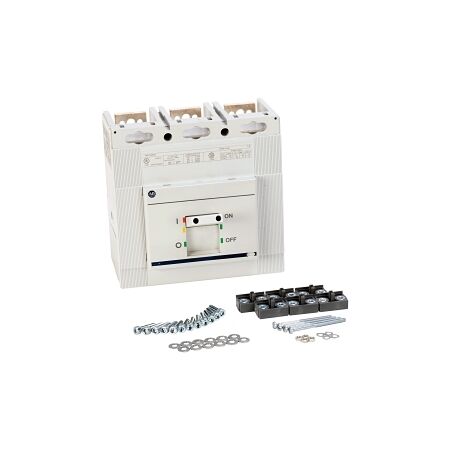

Allen-Bradley 140G MCCB M Frame Less Trip Unit 50kA 3P

MCCB 800A 3P | 50kA Short Circuit | 1000V Insulation by NHP

BRAND: NHP

SKU: 140GM5X3

$2,939.60 List price: $3,903.40

+ −

30 Days Return Delivery Options

MCCB with 800A rated current and 3-pole configuration—ideal for industrial and commercial power distribution. Built for high efficiency, with 50kA short circuit capacity and 1000V insulation voltage.

Description
Attachments

Product Name/Title: Allen-Bradley 140G MCCB M Frame Less Trip Unit 50kA 3P

Brand: NHP

SKU: 140GM5X3

Alternatively Known As: Moulded Case Circuit Breaker, MCCB, Circuit Breaker 50kA

Technical Specifications

Rated current: 800 A
Number of poles: 3
Max rated operation voltage: 690 V
Rated ultimate short circuit breaking capacity: 50 kA
Rated service short circuit breaking capacity: 50 kA
Rated frequency: 50-60 Hz
Rated insulation voltage: 1000 V
Rated short circuit breaking capacity at 690 V: 22 kA
Rated impulse withstand voltage: 8 kV
Max operating temperature: 75 °C
Storage temperature: -40-80 °C
Max altitude before derating: 2000 m
Dimensions (H x L x W): 250mm x 159mm x 210mm
Weight: 10 kg

Key Features

Rated current: 800 A
Three-pole configuration
Short circuit breaking capacity: 50 kA
Rated insulation voltage: 1000 V
Electrical life: 7000 cycles
Mechanical life: 20000 cycles

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Power distribution in manufacturing facilities
Commercial: Electrical systems in large buildings
General: Protection of electrical circuits from overloads and short circuits

Standards & Compliance

Complies with AS/NZS 60898 for safety and performance standards.

Environmental Benefits

Designed for high efficiency and reliability in electrical systems.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Allen-Bradley 140G MCCB M Frame Less Trip Unit 50kA 3P is available now for immediate purchase. Ideal for industrial and commercial electrical systems.

Non-Returnable & Non-Cancellable

140GM5X3-AU-140G-MCCB-M-Frame-Datasheet.pdf (140GM5X3-AU-140G-MCCB-M-Frame-Datasheet.pdf, 273 Kb) [Download]
