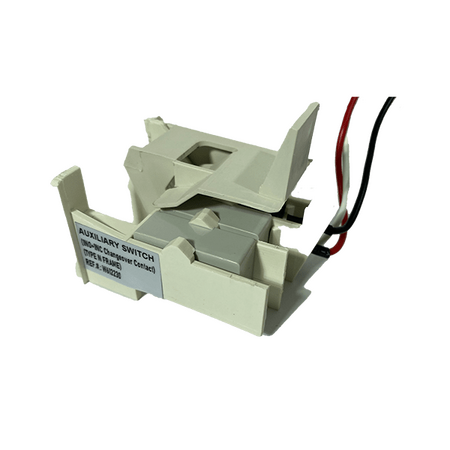

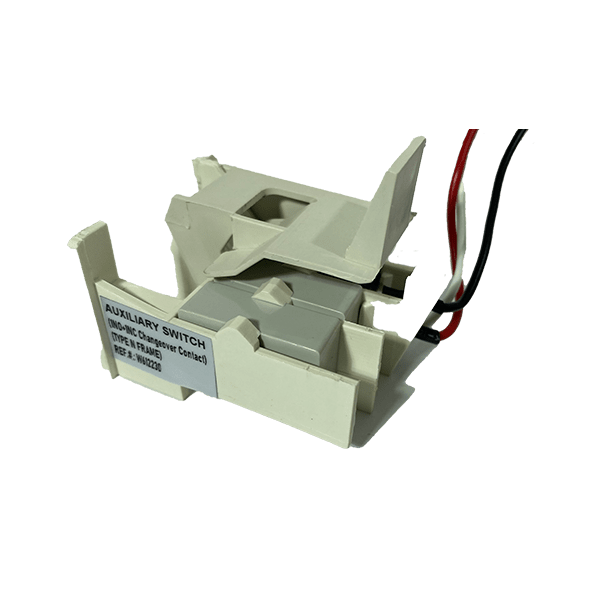

MCCB Auxiliary Switch N Frame Eltech
Eltech MCCB auxiliary switch features N-frame fit and contact status signalling. Ideal for MCCB status monitoring in switchboards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Auxiliary contact switch, MCCB auxiliary switch N frame
Technical Specifications
- Contact Configuration: SPDT auxiliary contact module
- Contact Rating (typical industry spec): up to 5 A at 125 V AC / 3 A inductive (based on auxiliary switch standards)
- Dimensions (H x L x W): 20mm x 50mm x 15mm
- Weight: 0.1 kg
Key Features
- N‑Frame fit for status monitoring of moulded case circuit breakers
- Provides remote signalling of MCCB contact status
- Compact plug‑in accessory module
Professional Installation Requirements
- Installation to be performed by a licensed electrician in accordance with AS/NZS 3000 Wiring Rules.
Applications
- Remote indication of MCCB ON/OFF/TRIPPED status in switchboards
- Interlocking systems and supervisory control of switchgear
Standards & Compliance
- Likely complies with AS/NZS 3000 Wiring Rules for switchgear accessories
- Auxiliary switch functions consistent with requirements stated in switchgear standards such as AS 2067
Environmental Benefits
- Passive electrical accessory with extended service life reducing replacement waste
Warranty Information
Eltech Australia 7‑year warranty when installed by a licensed electrician and installed according to manufacturer’s instructions ([eltech.com.au](https://eltech.com.au/wp-content/uploads/2022/07/Terms-and-Conditions-of-Trade-Eltech.pdf?utm_source=openai))
Available Now
Available through authorised Australian distributors and electrical wholesalers.
