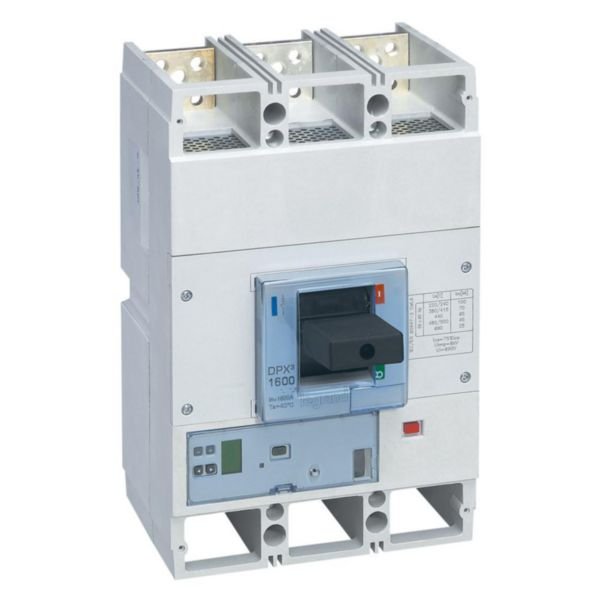

MCCB DPX³ 1600 S2 Electronic Release | 3-Pole | 50 kA Breaking Capacity | 1600 A Rated Current | @Each of 1 | by Legrand
MCCB DPX³ 1600 S2 electronic release circuit breaker is designed for reliable protection and control in industrial and commercial applications. With a 50 kA breaking capacity and a 3-pole configuration, it ensures optimal safety for low voltage electrical circuits. Ideal for electrical distribution panels, this circuit breaker features adjustable settings for overload and short-circuit release, making it a versatile choice for various installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Rated permanent current (Iu): 1600 A
- Rated voltage: 220-690 V
- Rated short-circuit breaking capacity (Icu) at 400 V, 50 Hz: 50 kA
- Overload release current setting: 640-1600 A
- Adjustment range short-term delayed short-circuit release: 960-16000 A
- Adjustment range undelayed short-circuit release: 20000 A
- Number of poles: 3
- Type of electrical connection: Screw connection
- Number of auxiliary contacts as change-over contact: 3
- With switched-off indicator and integrated under voltage release
- Degree of protection: IP30
- Contains 2 lithium batteries (CR1616)
- Dimensions (H x L x W): 250mm x 200mm x 150mm
- Weight: 25 kg
Key Features
- Moulded case circuit breaker for switching, control, isolation, and protection
- Electronic release S2 with adjustable Ir, Isd, tr, tsd settings
- Breaking capacity Icu 50 kA at 400 V~
- 3-pole configuration with 1600 A rated current
- Includes connection plates for bars and insulated phase barriers
- Sealable adjustment and green indicator lamp
- Connector for test unit and logic dynamic selectivity
- Screw connection for main circuit
- IP30 degree of protection
- Can be mounted on plate in XL³ cabinets and enclosures
- Supplied with 2 lithium batteries (CR1616)
Professional Installation Requirements
- Installation must be performed by a qualified electrician familiar with low voltage switchgear and circuit breaker systems to ensure compliance with safety standards.
Applications
- Industrial electrical distribution panels
- Commercial and residential switchboards
- Protection and control of low voltage electrical circuits
- Power cabinets requiring high breaking capacity circuit breakers
Standards & Compliance
- Complies with AS/NZS 60947-2 – Low-voltage switchgear and controlgear - Circuit-breakers
Environmental Benefits
- Enhanced electrical safety reduces risk of electrical fires and energy loss
- Durable design extends product lifecycle reducing waste
- Electronic release optimizes protection settings for energy efficiency
Warranty Information
Standard manufacturer warranty applies, typically 1-2 years against manufacturing defects.
Available Now
The Legrand MCCB DPX³ 1600 - S2 electronic release 3P 1600A 50kA circuit breaker is available for immediate purchase, ideal for industrial and commercial electrical protection applications.
