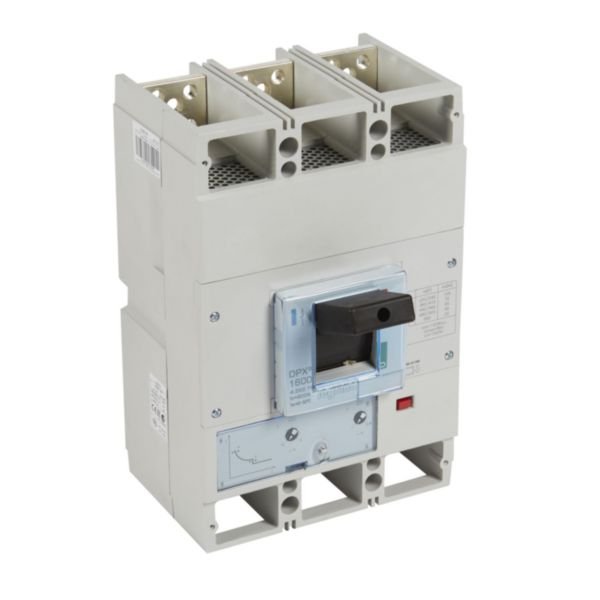

MCCB DPX³ 1600 | Thermal Magnetic Release | 3-Pole 800A | 70kA Breaking Capacity | @Each of 1 | by Legrand
MCCB DPX³ 1600 is a robust thermal magnetic circuit breaker designed for industrial and commercial applications. With a 3-pole configuration and a rated current of 800A, it offers a breaking capacity of 70kA at 400V, ensuring reliable overload and short circuit protection. Ideal for electrical distribution panels, this device enhances safety and efficiency while complying with AS/NZS 60950 standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MCCB DPX³ 1600 | Thermal Magnetic Release | 3-Pole 800A | 70kA Breaking Capacity | @Each of 1 | by Legrand
Brand: Legrand
SKU: 422276
Alternatively Known As: MCCB DPX3 1600, Legrand DPX3 1600 Circuit Breaker, Thermal Magnetic MCCB 800A, Molded Case Circuit Breaker 3P 70kA
Technical Specifications
- Rated permanent current (Iu): 800 A
- Rated voltage: 220-690 V
- Rated short-circuit breaking capacity (Icu) at 400 V, 50 Hz: 70 kA
- Overload release current setting: 640-800 A
- Adjustment range undelayed short-circuit release: 4000-8000 A
- Device construction: Fixed built-in technique
- Integrated earth fault protection: No
- Type of electrical connection of main circuit: Screw connection
- Number of auxiliary contacts as change-over contact: 3
- With switched-off indicator: Yes
- With integrated under voltage release: Yes
- Number of poles: 3
- Position of connection for main current circuit: Front side
- Type of control element: Wing knob
- Complete device with protection unit: Yes
- Motor drive integrated: No
- Motor drive optional: Yes
- Degree of protection (IP): IP30
- Dimensions (H x L x W): 250mm x 200mm x 150mm
- Weight: 15 kg
Key Features
- Thermal magnetic release for overload and short circuit protection
- 3-pole configuration with 800 A rated current
- Breaking capacity of 70 kA at 400 V~
- Adjustable thermal release from 0.8 to 1 In
- Adjustable magnetic release from 5 to 10 In
- Sealable adjustment for security
- Supplied with connection plates and insulated phase barriers
- Front side screw connection for main circuit
- IP30 degree of protection
- Includes 3 auxiliary change-over contacts and switched-off indicator
- Integrated under voltage release included
- Can be mounted on plate in XL³ cabinets and enclosures
Professional Installation Requirements
- Installation must be performed by a qualified electrician to ensure compliance with electrical safety standards and proper integration into switchboards.
Applications
- Industrial electrical distribution panels
- Commercial switchboards and power cabinets
- Protection and control of low voltage electrical circuits
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Enhances electrical safety reducing risk of fire and equipment damage
- Supports energy efficiency by protecting circuits from overloads
- Durable design reduces need for frequent replacements
Warranty Information
Standard manufacturer warranty applies, typically 1-2 years against manufacturing defects.
Available Now
The Legrand MCCB DPX³ 1600 Thermal Magnetic Release 3P 800A 70kA is available for immediate purchase, ideal for industrial and commercial electrical protection applications.
