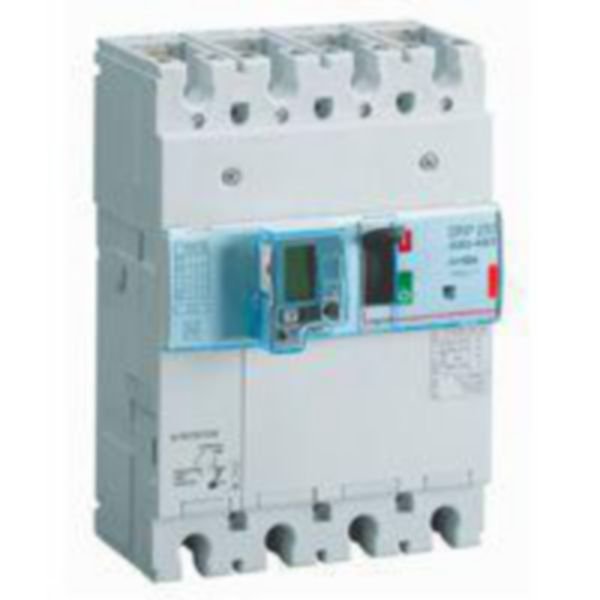

MCCB Electronic Energy Metering | 160 A | 36 kA Breaking Capacity | 4-Pole Configuration | @Each of 1 | by Legrand
MCCB electronic energy metering with 160 A rated current and 36 kA breaking capacity is perfect for industrial and commercial electrical distribution. Designed for reliable protection and monitoring, it features adjustable overload settings and integrated earth fault protection, making it ideal for low voltage applications and energy management systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MCCB Electronic Energy Metering | 160 A | 36 kA Breaking Capacity | 4-Pole Configuration | @Each of 1 | by Legrand
Brand: Legrand
SKU: 420457
Alternatively Known As: Moulded Case Circuit Breaker, MCCB with Energy Metering, Electronic MCCB, DPX3 250 MCCB, Legrand Circuit Breaker 160A
Technical Specifications
- Rated current (In): 160 A
- Rated voltage: 220-690 V
- Breaking capacity (Icu) at 400 V, 50 Hz: 36 kA
- Overload release current setting: 64-160 A
- Short-term delayed short-circuit release adjustment: 96-1600 A
- Undelayed short-circuit release adjustment: 96-1600 A
- Number of poles: 4
- Integrated earth fault protection with adjustable sensitivity (0.03 - 3 A)
- Degree of protection: IP30
- Connection type: Screw connection
- Mounting: DIN rail or plate in XL³ cabinets
- Auxiliary contacts: 1 normally closed, 1 change-over
- Under voltage release integrated
- Device construction: Fixed built-in
- Dimensions (H x L x W): 160mm x 90mm x 140mm
- Weight: 5.5 kg
Key Features
- Electronic release MCCB with energy metering and earth leakage protection
- Adjustable overload and short circuit protection settings
- Integrated LCD screen for energy, current, voltage, frequency, power, and harmonics monitoring
- Breaking capacity of 36 kA at 400 V
- 4-pole configuration with 160 A rated current
- Front side screw connection and DIN rail mounting compatible
- Includes earth leakage module with adjustable sensitivity and tripping times
- IP30 degree of protection
- Supplied with fixing screws, connection plates, insulated shields, and compatible with cage terminals up to 150 mm²
Professional Installation Requirements
- Installation must be performed by a qualified electrician familiar with low voltage switchgear and compliant with local electrical codes.
Applications
- Industrial electrical distribution panels
- Commercial and residential switchboards
- Low voltage electrical line protection and control
- Energy monitoring and management systems
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Integrated energy metering helps optimize energy consumption and reduce waste
- Electronic protection reduces risk of electrical faults and fire hazards
- Supports sustainable electrical system management through monitoring
Warranty Information
Standard Legrand warranty applies, typically 1 to 3 years depending on region and application.
Available Now
The Legrand DPX³ 250 MCCB with electronic energy metering and earth leakage protection is available for immediate purchase. Ideal for industrial, commercial, and residential electrical distribution and protection applications.
